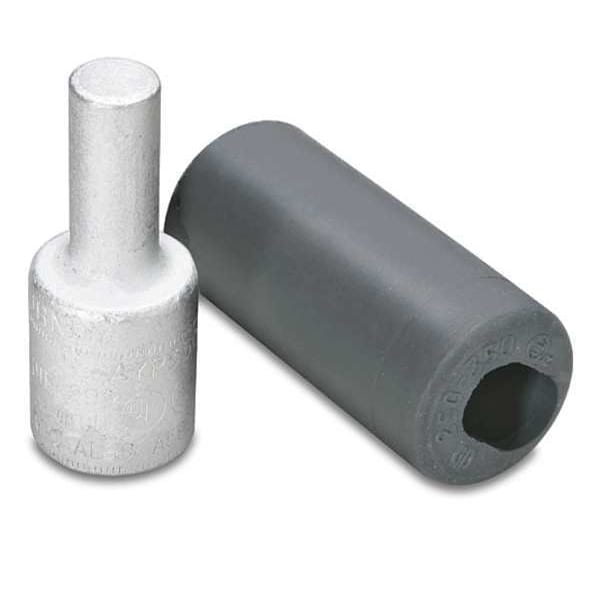

Compression Adapter, 6 AWG Max, Standard Barrel, Aluminum, Tan
Mfr # AYP6
Zoro # G4650292
product price: $17.95
/eaKey Features
For Wire Size
6 AWG
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Inspection Hole
Yes
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
AYP6
Zoro #
G4650292
UPC #
781810556511
Country of Origin
United States
Dimensions
For Wire Size
6 AWG
Barrel Size
Standard
Min. Wire Size
6 AWG
Length
1.85 in
Width
0.6 in
Diameter
15/64 in
Max. Wire Size
6 AWG
Length (Straight Wireway)
1.85 in
Pin Diameter
0.234 in
Overall Length
1.85 in
For Stranded Copper Wire Size - Minimum
6 AWG
Strip Length
1 1/16 in
For Stranded Copper Wire Size - Maximum
6 AWG
For Stranded Aluminum Wire Size - Maximum
6 AWG
Pin Length
0.68 in
Pin Equivalent Wire Size
4 AWG
Barrel Length
1 in
Barrel Diameter
0.6 in
Conductor - Copper Str Compact Size
6 AWG
Conductor - Copper DLO Size
8 AWG
Conductor - Copper Str Size Range
6 AWG
Dimension - Strip Length inch
42370
Conductor - AL Str Size Range
6 AWG
Conductor Size
6 AWG
Dimension - B Length fraction
1 in
Conductor - Copper Flex I Size
6 AWG
Conductor - Copper Str Size
6 AWG
Conductor - Copper Solid Size
6 AWG
Equivalent Pin Size
4 AWG
Dimension - P inch
0.68 in
Dimension - Length Overall inch
1.85 in
Conductor - Copper Flex I Size Range
8 AWG
Conductor - AL Str Size
6 AWG
Dimension - B Outside Diameter inch
0.23 in
Conductor - Copper Solid Size Range
6 AWG
Dimension - A Outside Diameter inch
0.60 in
Dimension - L Length Overall mm
47 mm
Dimension - B Length inch
1.00 in
Conductor - Copper DLO Size Range
8 AWG
Maximum Run Wire Size
6 AWG
For Maximum Wire Size - Stranded
6 AWG
Minimum Wire Size
6 AWG
Minimum Run Wire Size
6 AWG
For Minimum Wire Size - Stranded
6 AWG
For Minimum Wire Size - Solid
6 AWG
Maximum Wire Size
6 AWG
For Maximum Wire Size - Solid
6 AWG
Description
Compression Adapter, Connection Orientation Straight, Die Code 296, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 1, Pin Diameter 0.234 in, Pin Equivalent Wire Size 4 AWG, Pin Length 0.68 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 0.6 in, Barrel Length 1 in, Color Code Tan
