Shop BURNDY

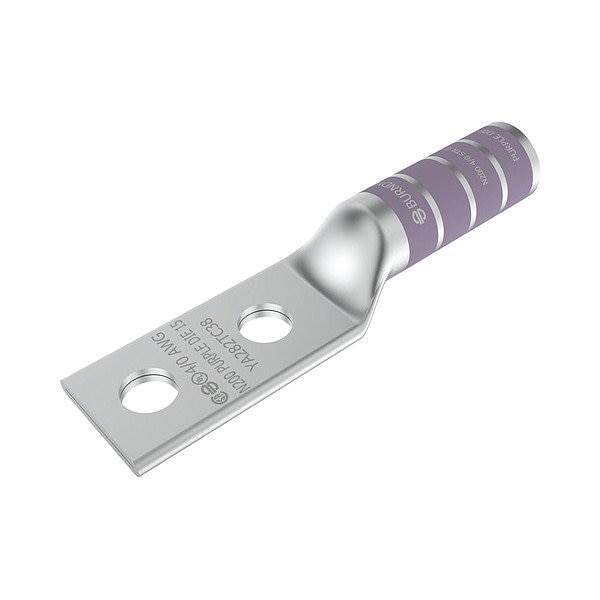

Compression Terminal

  • Mfr # YA282NTC38

  • Zoro # G616451736

product price:  $27.69
/ea

Key Features

Strip Length
1 11/16 in
Standards
CSA Certified, UL Listed
Tongue Width
1.02 in
Hole Center to End
0.41 in
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YA282NTC38
Zoro #
G616451736
UPC #
781810019894
Country of Origin
United States

Dimensions

Strip Length
1 11/16 in
Tongue Width
1.02 in
Hole Size
0.41 in
Overall Width
1.02 in
Overall Length
4.74 in
Barrel Outside Diameter
0.69 in
Barrel Size
Long
For Stranded Copper Wire Size - Maximum
4/0 AWG
Barrel Inside Diameter
0.55 in
For Stranded Copper Wire Size - Minimum
4/0 AWG
Tongue Thickness
0.14 in
For Stud Size
3/8 in
Wire Rope Length
4.74 in

Details

Item
Compression Terminal
Standards
CSA Certified, UL Listed
Hole Center to End
0.41 in
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Tongue Angle
Straight
Contact Finish
Tin
Maximum Voltage
35 kV
Barrel Style
Chamfered
For Wire Type
Stranded
Hole Center to Center
1.75 in
Material
Copper
Inspection Hole
No
Termination Style
Crimp
Color Code
Purple
For Conductor Material
Copper
Die Code
15

Description

Compression Lug, Barrel Size Long, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1.02 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
