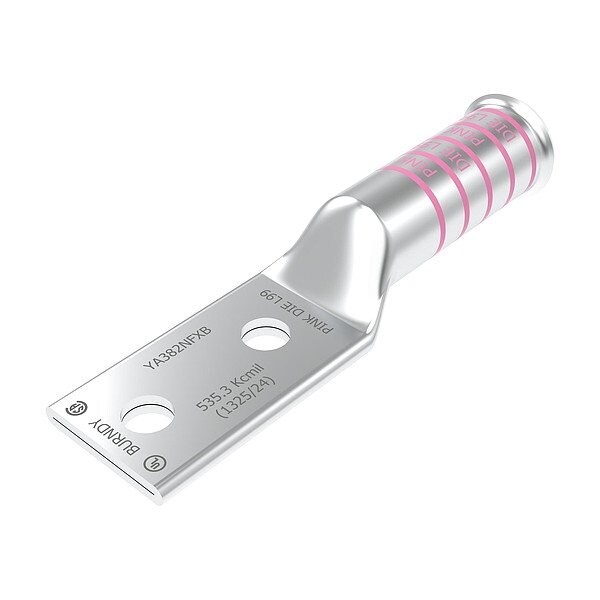

Compression Terminal
Mfr # YA382NFXB
Zoro # G416557751
product price:Â
$
137.99
/ea
Free Shipping & Returns
Key Features
For Wire Type
Stranded
Contact Finish
Tin
Overall Length
7.01 in
Hole Center to Center
1.75 in
Standards
CSA Certified, UL Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA382NFXB
- Zoro #
- G416557751
- UPC #
- 781810039939
- Country of Origin
- United States
Dimensions
- Overall Length
- 7.01 in
- Overall Width
- 1.84 in
- Barrel Size
- Long
- Hole Size
- 0.56 in
- Tongue Thickness
- 0.26 in
- Strip Length
- 3 3/16 in
- For Stranded Copper Wire Size - Maximum
- 550 kcmil
- Barrel Outside Diameter
- 1.25 in
- For Stranded Copper Wire Size - Minimum
- 500 kcmil
- For Stud Size
- 1/2 in
- Tongue Width
- 1.84 in
- Wire Rope Length
- 7.01 in
- Length
- 7.01 in
Description
Compression Lug, Barrel Size Long, Color Code Pink, Die Code L99, Tongue Angle Straight, Tongue Width 1.84 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 550 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
