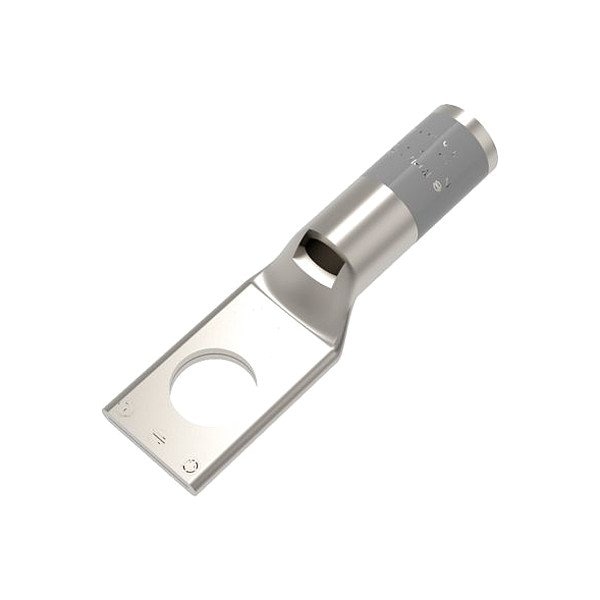

Compression Terminal
Mfr # YA4CL6BOX
Zoro # G921725706
product price:Â
$
7.19
/ea
Key Features
Inspection Hole
Yes
Hole Size
0.53 in
Contact Finish
Tin
Barrel Outside Diameter
0.34 in
Tongue Style
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA4CL6BOX
- Zoro #
- G921725706
- UPC #
- 781810552551
- Country of Origin
- United States
Dimensions
- Hole Size
- 0.53 in
- Barrel Outside Diameter
- 0.34 in
- For Stud Size
- 1/2 in
- Tongue Width
- 0.71 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- For Stranded Copper Wire Size - Minimum
- 4 AWG
- Tongue Thickness
- 0.06 in
- Barrel Size
- Standard
- Wire Rope Length
- 2.2 in
- Strip Length
- 7/8 in
- Overall Width
- 0.71 in
- Overall Length
- 2.2 in
- Length
- 2.2 in
Description
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 8, Tongue Angle Straight, Tongue Width 0.71 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 1
