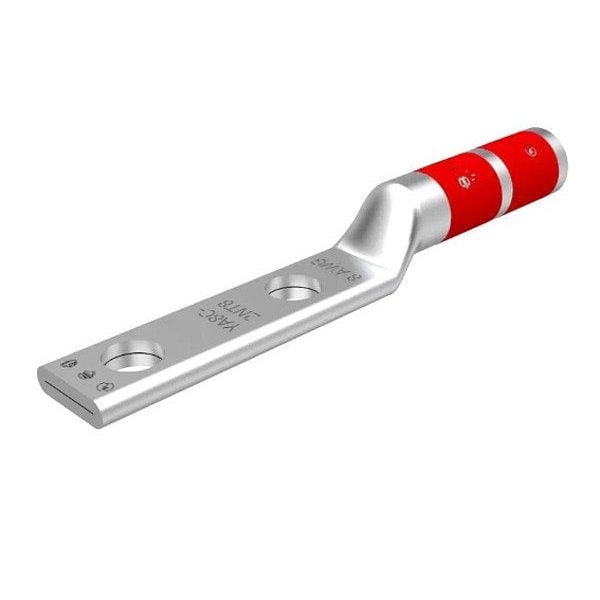

Compression Terminal
Mfr # YA8C2N
Zoro # G616451651
product price:Â $23.69
/eaKey Features
For Stud Size
1/2 in
For Stranded Copper Wire Size - Maximum
8 AWG
Hole Center to Center
1.75 in
Material
Copper
Barrel Style
Chamfered
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
YA8C2N
Zoro #
G616451651
UPC #
781810447550
Country of Origin
United States
Dimensions
For Stud Size
1/2 in
For Stranded Copper Wire Size - Maximum
8 AWG
Barrel Outside Diameter
0.27 in
Overall Length
4.08 in
Barrel Size
Long
Overall Width
0.83 in
Tongue Thickness
0.12 in
For Stranded Copper Wire Size - Minimum
8 AWG
Tongue Width
0.83 in
Strip Length
7/8 in
Details
Item
Compression Terminal
Hole Center to Center
1.75 in
Material
Copper
Barrel Style
Chamfered
Die Code
49
Termination Style
Crimp
Tongue Angle
Straight
Contact Finish
Tin
For Conductor Material
Copper
Color Code
Red
Standards
CSA Certified, UL Listed
Inspection Hole
No
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Maximum Voltage
35 kV
Description
Compression Lug, Barrel Size Long, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
