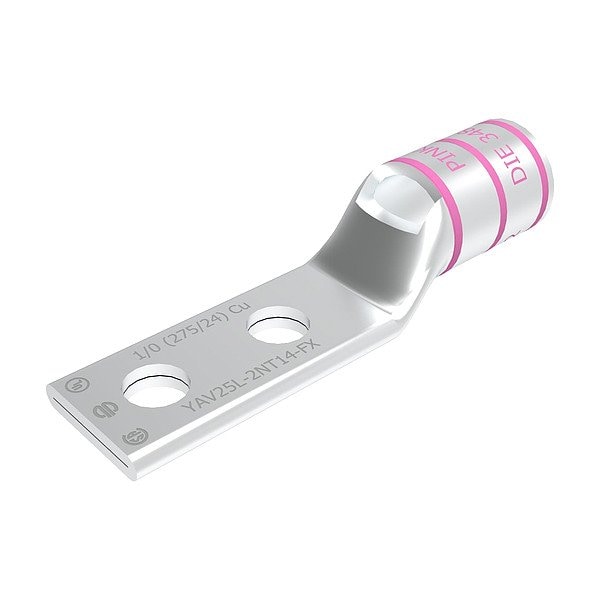

Compression Terminal
- Mfr # YAV25L2NT14FX
- Zoro # G216451662
product price:Â
$
16.69
/ea
Key Features
For Wire Type
Stranded
Hole Center to End
0.31 in
Hole Size
0.27 in
Overall Width
0.64 in
Tongue Thickness
0.12 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- YAV25L2NT14FX
- Zoro #
- G216451662
- UPC #
- 781810285497
- Country of Origin
- United States
- Item
- Compression Terminal
- For Wire Type
- Stranded
- Hole Center to End
- 0.31 in
- For Conductor Material
- Copper
- Tongue Style
- Narrow
- Maximum Voltage
- 35 kV
- Special Features
- Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
- Die Code
- 12
- Termination Style
- Crimp
- Tongue Angle
- Straight
- Barrel Style
- Chamfered
- Contact Finish
- Tin
- Hole Center to Center
- 0.63 in
- Material
- Copper
- Standards
- CSA Certified, UL Listed
- Inspection Hole
- Yes
- Color Code
- Pink
- Shell Material
- Copper
- Traction Material
- Copper
Dimensions
- Hole Size
- 0.27 in
- Overall Width
- 0.64 in
- Tongue Thickness
- 0.12 in
- Strip Length
- 11/16 in
- For Stranded Copper Wire Size - Minimum
- 1/0 AWG
- Barrel Size
- Standard
- Barrel Outside Diameter
- 0.56 in
- Overall Length
- 2.39 in
- For Stranded Copper Wire Size - Maximum
- 1/0 AWG
- For Stud Size
- 1/4 in
- Tongue Width
- 0.64 in
- Wire Rope Length
- 2.39 in
- Length
- 2.39 in
Description
Compression Lug, Barrel Size Standard, Color Code Pink, Die Code 12, Tongue Angle Straight, Tongue Width 0.64 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole Yes, Hole Center to Center 0.63 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
