Shop BURNDY

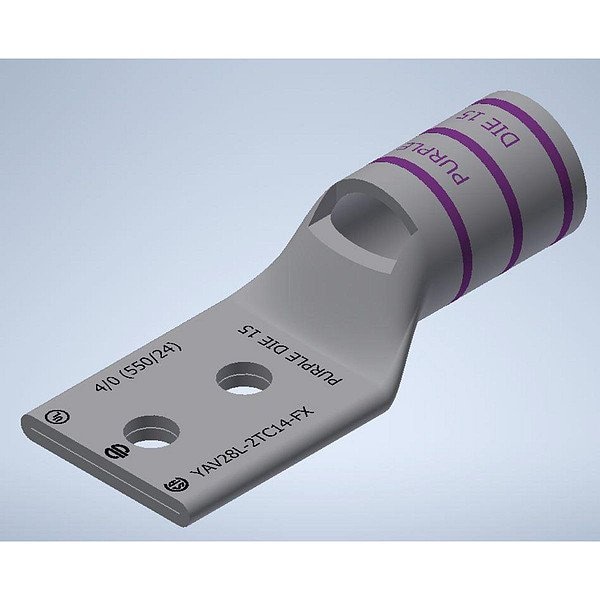

Compression Terminal

  • Mfr # YAV28L2TC14FX

  • Zoro # G916451634

product price:  $30.85
/ea

Key Features

Tongue Style
Standard
Maximum Voltage
35 kV
For Stud Size
1/4 in
Standards
CSA Certified, UL Listed
Strip Length
1 1/16 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
YAV28L2TC14FX
Zoro #
G916451634
UPC #
781810103098
Country of Origin
United States

Dimensions

For Stud Size
1/4 in
Strip Length
1 1/16 in
Tongue Thickness
0.15 in
Tongue Width
1.14 in
Overall Length
2.86 in
Hole Size
0.27 in
Overall Width
1.14 in
For Stranded Copper Wire Size - Minimum
4/0 AWG
Barrel Size
Standard
Barrel Outside Diameter
0.77 in
For Stranded Copper Wire Size - Maximum
4/0 AWG

Details

Item
Compression Terminal
Tongue Style
Standard
Maximum Voltage
35 kV
Standards
CSA Certified, UL Listed
Contact Finish
Tin
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Inspection Hole
Yes
Tongue Angle
Straight
For Wire Type
Stranded
Barrel Style
Chamfered
Termination Style
Crimp
For Conductor Material
Copper
Hole Center to Center
0.625 in
Material
Copper
Hole Center to End
0.31 in
Color Code
Purple
Die Code
15

Description

Compression Lug, Barrel Size Standard, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1.14 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
