Shop BURNDY

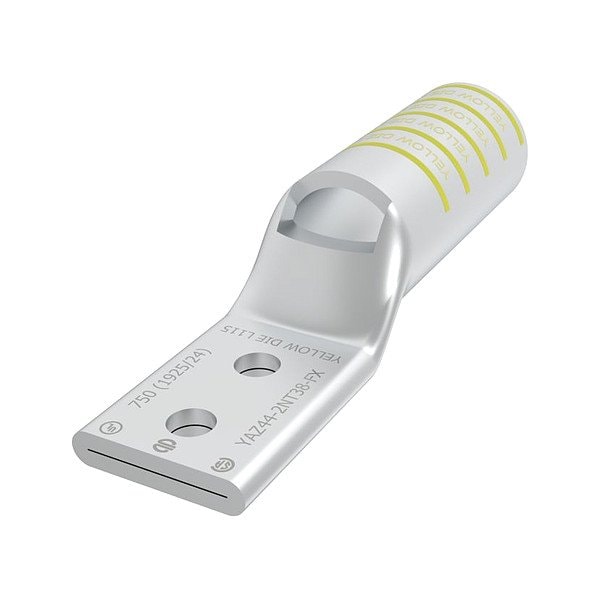

Compression Terminal

  • Mfr # YAZ442NT38FX

  • Zoro # G316451685

product price:  $260.99
/ea
Free Shipping & Returns

Key Features

For Stranded Copper Wire Size - Maximum
750 kcmil
For Wire Type
Stranded
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
For Stranded Copper Wire Size - Minimum
750 kcmil
Tongue Width
1.62 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
YAZ442NT38FX
Zoro #
G316451685
UPC #
781810166178
Country of Origin
United States

Dimensions

For Stranded Copper Wire Size - Maximum
750 kcmil
For Stranded Copper Wire Size - Minimum
750 kcmil
Tongue Width
1.62 in
Barrel Size
Long
Barrel Outside Diameter
1.5 in
Overall Width
1.62 in
For Stud Size
3/8 in
Tongue Thickness
0.33 in
Hole Size
0.41 in
Overall Length
6.09 in
Strip Length
3 1/16 in

Details

Item
Compression Terminal
For Wire Type
Stranded
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Contact Finish
Tin
Hole Center to Center
1 in
Hole Center to End
0.5 in
For Conductor Material
Copper
Termination Style
Crimp
Tongue Angle
Straight
Material
Copper
Maximum Voltage
35 kV
Die Code
L115
Color Code
Yellow
Standards
CSA Certified, UL Listed
Inspection Hole
Yes
Barrel Style
Chamfered

Description

Compression Lug, Barrel Size Long, Color Code Yellow, Die Code L115, Tongue Angle Straight, Tongue Width 1.62 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
