  11. Copper Cable to Post/Flat, 1 sol

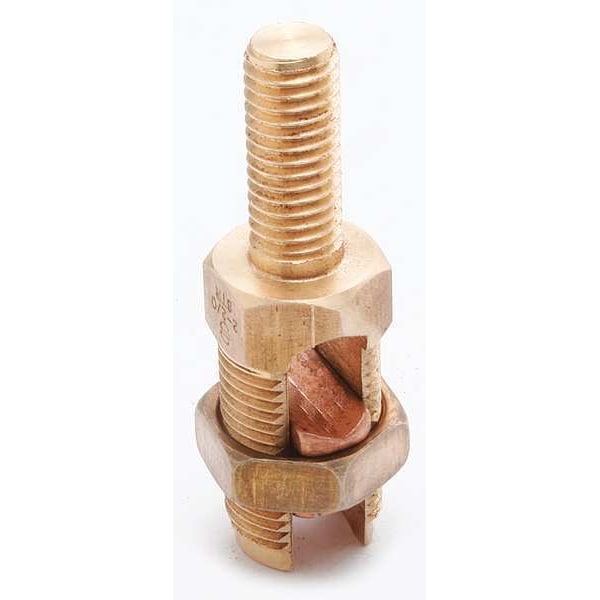

Burndy Copper Cable to Post/Flat, 1 sol K2C28B1 - main

Copper Cable to Post/Flat, 1 sol

  • Mfr # K2C28B1

  • Zoro # G4657694

product price: $156.99
/ea
Free Shipping & Returns

Key Features

Material
Copper
Standards
UL Listed, UL Listed-Direct Burial, UL467
Type - Grounding Connector
Mechanical
Stud Length
1-1/4"
Material of Construction
Leaded Bronze alloy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2C28B1
Zoro #
G4657694
UPC #
781810257555
Country of Origin
United States

Dimensions

Stud Length
1-1/4"
Conductor Size
4/0 AWG 1 to 1 AWG
Length - Grounding Stud
1 1/4 in
Thread Size
5/8"-11
Wire Size - Grounding
1 to 4/0 AWG Solid, 1 to 4/0 AWG Stranded
Thread Size - Grounding Stud
5/8 in 11
Grounding Wire Size
1 to 4/0 AWG SOL, 1 to 4/0 AWG STR
Overall Width
1 3/16 in
Overall Length
3 15/16 in
Dimension - Bolt Size fraction
45054
Conductor - Copper Str Size
1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Size
1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Dimension - Height fraction
37989
Dimension - Length Overall inch
3.94 in
Dimension - B Length fraction
1-1/4 in
Dimension - L Length Overall mm
100 mm
Dimension - Nut Width inch
1.35 in
Dimension - Height inch
1.94 in
Dimension - Body Width inch
1.18 in
Dimension - B Length inch
1.25 in
Dimension - P inch
0.55 in
Dimension - Threads per inch
11
Conductor - Copper Str Size Range
1 AWG-4/0 AWG
Dimension - D inch
1.50 in
Conductor - Copper Solid Size Range
1 AWG-4/0 AWG

Details

Item
Grounding Split Bolt Connector with Stud
Material
Copper
Standards
UL Listed, UL Listed-Direct Burial, UL467
Type - Grounding Connector
Mechanical
Material of Construction
Leaded Bronze alloy
Material - Grounding Connector
Leaded Bronze Alloy
Item - Grounding Connector
Grounding Split Bolt Connector with Stud
Number of Wires - Grounding
1
Series
K2C, KC
Conductor Type
Run
Connector Material
Copper Alloy
Installation Torque
660 in-lb
Connector Type
Mechanical
Application
For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
Certification - UL Listed Direct Burial
Yes
Standards - Industry Standards Met
UL467
Plating Type
Unplated
Industry Standard(s)
UL467
Physical Attribute - Number of Conductors Accommodated Total
2
Trade Name
SERVIT POSTâ„¢
Type
KC and K2C Series
Stud Installation Torque inch pounds
660 LBS/in
UL Listed
Yes

Description

Grounding Split Bolt Connector with Stud, Connector Material Copper Alloy, Connector Type Mechanical, Grounding Wire Size 1 to 4/0 AWG SOL, 1 to 4/0 AWG STR, Number of Wires - Grounding 1, Overall Length 3 15/16 in, Thread Size 5/8 In.-11, Standards UL Listed, UL Listed-Direct Burial, UL467, Conductor Size 4/0 AWG 1 to 1 AWG, Conductor Type Run, Installation Torque 660 in-lb, Overall Width 1 3/16 in, K2C, KC
