  11. Copper Cable to Post/Flat, 10 sol

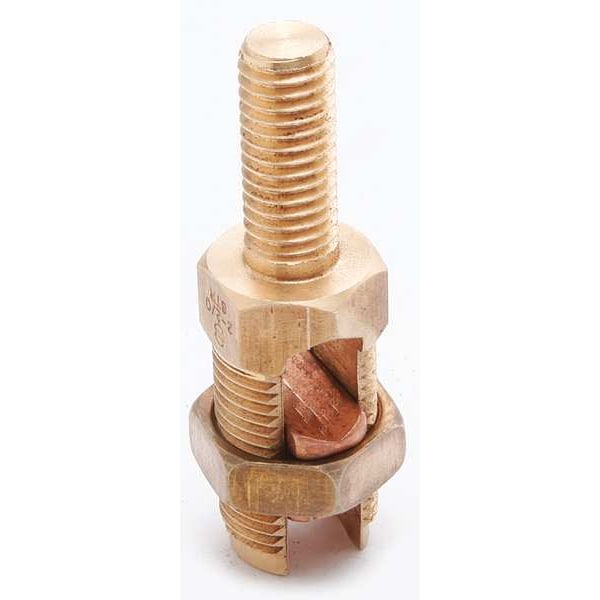

Burndy Copper Cable to Post/Flat, 10 sol K2C20 - main

Copper Cable to Post/Flat, 10 sol

  • Mfr # K2C20

  • Zoro # G4674223

product price: $27.55
/ea

Key Features

Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Thread Size - Grounding Stud
5/16 in 18
Thread Size
5/16"-18
Number of Wires - Grounding
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2C20
Zoro #
G4674223
UPC #
781810257005
Country of Origin
United States

Dimensions

Thread Size - Grounding Stud
5/16 in 18
Thread Size
5/16"-18
Wire Size - Grounding
10 to 4 AWG Solid, 10 to 4 AWG Stranded
Conductor Size
10 to 5 AWG STR
Length - Grounding Stud
13/32 in
Stud Length
13/32"
Grounding Wire Size
10 to 4 AWG SOL, 10 to 4 AWG STR
Overall Width
1/2 in
Overall Length
1 7/16 in
Dimension - Height fraction
45115
Dimension - B Length fraction
13/32 in
Dimension - Body Width inch
0.50 in
Dimension - Width inch
27 mm
Dimension - L Length Overall mm
36.1 mm
Dimension - Length Overall inch
1.42 in
Dimension - D inch
0.62 in
Dimension - Nut Width inch
0.69 in
Conductor - Copper Str Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG
Conductor - Copper Solid Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - B Length inch
0.41 in
Dimension - P inch
0.22 in
Conductor - Copper Str Size Range
5 AWG - 10 AWG
Dimension - Height inch
1.06 in
Conductor - Copper Solid Size Range
4 AWG - 10 AWG
Dimension - Threads per inch
18
Dimension - Bolt Size fraction
45062

Details

Item
Grounding Split Bolt Connector with Stud
Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Number of Wires - Grounding
1
Material of Construction
Leaded Bronze alloy
Item - Grounding Connector
Grounding Split Bolt Connector with Stud
Material - Grounding Connector
Leaded Bronze Alloy
Type - Grounding Connector
Mechanical
Connector Type
Mechanical
Series
K2C, KC
Connector Material
Leaded Bronze Alloy
Conductor Type
Run
Installation Torque
180 in-lb
Application
For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
Stud Installation Torque inch pounds
180 LBS/in
Industry Standard(s)
UL467
Trade Name
SERVIT POSTâ„¢
Type
KC and K2C Series
Certification - UL Listed Direct Burial
Yes
Standards - Industry Standards Met
UL467
Plating Type
Unplated
Physical Attribute - Number of Conductors Accommodated Total
2
UL Listed
Yes

Description

Grounding Split Bolt Connector with Stud, Connector Material Leaded Bronze Alloy, Connector Type Mechanical, Grounding Wire Size 10 to 4 AWG SOL, 10 to 4 AWG STR, Number of Wires - Grounding 1, Overall Length 1 7/16 in, Thread Size 5/16 In.-18, Standards UL Listed, UL Listed-Direct Burial, UL467, Conductor Size 10 to 5 AWG STR, Conductor Type Run, Installation Torque 180 in-lb, Overall Width 1/2 in, K2C, KC
