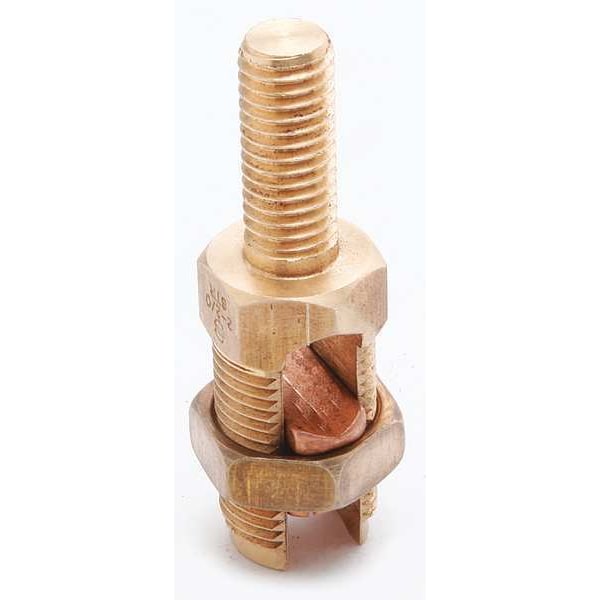

Burndy Copper Cable to Post/Flat, 2 sol K2C26 - main

Copper Cable to Post/Flat, 2 sol

  • Mfr # K2C26

  • Zoro # G4685265

product price: $79.65
/ea
Free Shipping & Returns

Key Features

Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Material - Grounding Connector
Leaded Bronze Alloy
Conductor Size
2 to 2/0 AWG STR
Length - Grounding Stud
17/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2C26
Zoro #
G4685265
UPC #
781810257401
Country of Origin
United States

Dimensions

Conductor Size
2 to 2/0 AWG STR
Length - Grounding Stud
17/32 in
Wire Size - Grounding
2 to 1/0 AWG Stranded, 2 to 2/0 AWG Solid
Thread Size - Grounding Stud
1/2 in 13
Stud Length
17/32"
Thread Size
1/2"-13
Grounding Wire Size
2 to 2/0 AWG STR, 2 to 3/0 AWG SOL
Overall Length
2 5/8 in
Overall Width
7/8 in
Conductor - Copper Solid Size Range
2 AWG-3/0 AWG
Dimension - Threads per inch
13
Dimension - Height fraction
39450
Conductor - Copper Solid Size
2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
Dimension - B Length inch
0.52 in
Dimension - Height inch
1.81 in
Dimension - D inch
0.75 in
Dimension - L Length Overall mm
67 mm
Dimension - Length Overall inch
2.62 in
Dimension - Width inch
46 mm
Dimension - B Length fraction
17/32 in
Dimension - Nut Width inch
1.04 in
Conductor - Copper Str Size
2 AWG;1 AWG;1/0 ;2/0 AWG
Conductor - Copper Str Size Range
2/0 AWG - 2 AWG
Dimension - Bolt Size fraction
44928
Dimension - P inch
0.44 in
Dimension - Body Width inch
0.88 in

Details

Item
Grounding Split Bolt Connector with Stud
Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Material - Grounding Connector
Leaded Bronze Alloy
Item - Grounding Connector
Grounding Split Bolt Connector with Stud
Number of Wires - Grounding
1
Material of Construction
Leaded Bronze alloy
Type - Grounding Connector
Mechanical
Conductor Type
Run
Connector Material
Leaded Bronze Alloy
Connector Type
Mechanical
Series
K2C, KC
Installation Torque
480 in-lb
Application
For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar
UL Listed
Yes
Stud Installation Torque inch pounds
480 LBS/in
Type
KC and K2C Series
Industry Standard(s)
UL467
Certification - UL Listed Direct Burial
Yes
Physical Attribute - Number of Conductors Accommodated Total
2
Trade Name
SERVIT POSTâ„¢
Plating Type
Unplated
Standards - Industry Standards Met
UL467

Description

Grounding Split Bolt Connector with Stud, Connector Material Leaded Bronze Alloy, Connector Type Mechanical, Grounding Wire Size 2 to 2/0 AWG STR, 2 to 3/0 AWG SOL, Number of Wires - Grounding 1, Overall Length 2 5/8 in, Thread Size 1/2 In.-13, Standards UL Listed, UL Listed-Direct Burial, UL467, Conductor Size 2 to 2/0 AWG STR, Conductor Type Run, Installation Torque 480 in-lb, Overall Width 7/8 in, K2C, KC
