  11. Crimping Tool, Cordless, Li-Ion, 18.0V

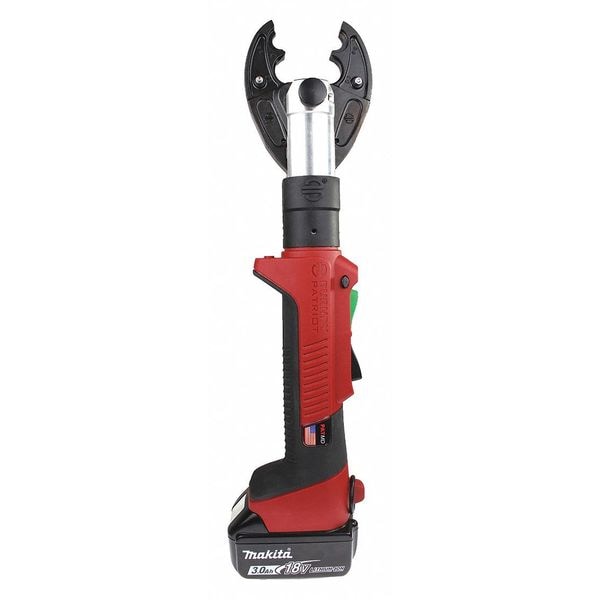

Burndy Crimping Tool, Cordless, Li-Ion, 18.0V PATMD6LW - main

Crimping Tool, Cordless, Li-Ion, 18.0V

  • Mfr # PATMD6LW

  • Zoro # G5091891

product price: $2,716.99
/ea
Free Shipping & Returns

Key Features

Voltage
18 V
Includes
Utility Tool Bag
Crimping Force
6 ton
Tool Weight
5.55 lb
Corded/Banded
Cordless
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PATMD6LW
Zoro #
G5091891
UPC #
621945467323
Country of Origin
United States

Dimensions

Overall Length
18.73 in
Overall Height
2.75 in
Overall Width
4.38 in
Maximum Compatible Wire/Cable Diameter
500 kcmil
Minimum Compatible Wire/Cable Diameter
14 AWG
Manufacturer Warranty Length
3 yr Battery, 3 yr Charger, 5 yr Limited, Lifetime Warranty On Infinity Drive

Details

Item
Cordless Crimping Tool
Voltage
18 V
Includes
Utility Tool Bag
Crimping Force
6 ton
Tool Weight
5.55 lb
Corded/Banded
Cordless
Series
PATMDLW
Rotating Angle (Deg.)
350
Crimping Die Series
W Style, W-VT Style, X Style
Primary Application - Crimping
Electrical Wire and Cable Crimping
Capacity Aluminum Lug - Crimper
8 AWG to 350 kcmil
Cordless Tool Battery Type
Li-Ion
Handle Type
Inline
Corded/Cordless
Cordless
Includes - Cordless Crimper
(1) Battery Charger - 18V, (1) Head - BG + D3 Grooves
Max. Crimping Force - Crimper
6 ton
Head Style - Crimper
Scissor
Auto-Cycle
No
Battery Capacity
3 Ah
Approximate Cycle Time
4.0 sec
Capacity Copper Lug - Crimper
8 AWG to 500 kcmil
Charger Replacement
Mfr. No. PATCHRGLI
Features
Clearly Engraved Cut Jaw Markings for Identification, Interchangeable Scissor Action Crimping and Cutting Jaws, LED Work Light, Lightweight, Compact and Ergonomic Design, Proprietary Locking Jaw Tabs, Safety Trigger Lock
Maximum Copper Lug Crimping Capacity
350 kcmil
UL 486A-B Connection Capability
Burndy
Number of Dies Included
0
Tool Series
PATRIOT MD-LW
Compatible Battery Manufacturer Part Number
BAT18V5AHLI, BAT18VLI
Wireless Tool Tracking
No
Charger Model Number
PATCHGRLI
Battery Model Number
BAT18VLI
Compatible Connector Type
Aluminum Lug, Copper Lug, Splices, Terminal
Compatible Wire/Cable Type
ACSR, AAC, Copper Cable, Copper Flex
Crimp Head Type
Die
Crimping Capacities
10 AWG to 2/0 AWG Copper Taps, 14 AWG to 4/0 AWG ACSR Taps, 14 AWG to 4/0 AWG Aluminum Taps, 2 AWG to 4/0 AWG, 6 AWG to 4/0 AWG, 6 AWG to 4/0 AWG Stirrups, 8 AWG to 350 kcmil Aluminum, 8 AWG to 350 kcmil Copper Flex Terminals and Splices, 8 AWG to 500 kcmil Copper Terminals and Splices, ACSR 10 AWG to 4/0 AWG Full-Tension Sleeves
Maximum Aluminum Lug Crimping Capacity
350 kcmil
Includes Batteries
Yes
Minimum Aluminum Lug Crimping Capacity
8 AWG
Power Source
Cordless
Included Charger Part Number
PATCHGRLI, PATCHGRLIDC
Includes Dies
Yes
Includes Charger
Yes
Cycle Time
4 sec
Compatible Charger Manufacturer Part Number
PATCHGRLI, PATCHGRLIDC
Head Rotation
180 Degrees
Grip Style
Ergonomic
Cordless Tool Kit Contents
(2) Batteries, Bare Tool, Charger
Compatible Die Type
W, X
Number of Batteries Included
2
Minimum Copper Lug Crimping Capacity
8 AWG
Included Battery Part Number
BAT18V5AHLI, BAT18VLI
Battery Platform
Makita 18V LXT
Head Style
Scissor

Description

Cordless Crimping Tool, Battery Platform Makita 18V LXT, Maximum Copper Lug Crimping Capacity 350 kcmil, Minimum Copper Lug Crimping Capacity 8 AWG, Maximum Aluminum Lug Crimping Capacity 350 kcmil, Minimum Aluminum Lug Crimping Capacity 8 AWG, Crimping Force 6 ton, Compatible Die Type W, X, Head Style Scissor, Number of Dies Included 0, Die Sizes included Not Applicable, Handle Type Inline, Cordless Tool Kit Contents (2) Batteries, Bare Tool, Charger, Battery Capacity 3 Ah
