  11. Ground Connector, 4AWG, 1.74In

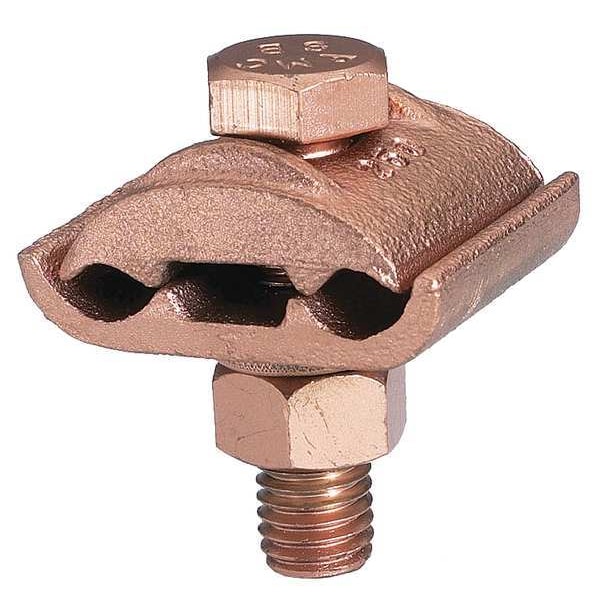

Burndy Ground Connector, 4AWG, 1.74In GC2626 - main

Ground Connector, 4AWG, 1.74In

  • Mfr # GC2626

  • Zoro # G4686132

product price: $71.89
/ea

Key Features

Item - Grounding Connector
Grounding Connector
Type
COMMERCIAL
Type - Grounding Connector
Mechanical
Length
1 in
Wire Size - Grounding
4 to 2/0 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GC2626
Zoro #
G4686132
UPC #
781810231661
Country of Origin
Mexico

Dimensions

Length
1 in
Wire Size - Grounding
4 to 2/0 AWG
Conductor Size
2/0 AWG to 4 AWG
Width
1.57 in
Grounding Wire Size
4 to 2/0 AWG SOL, 4 to 2/0 AWG STR
Overall Width
1 9/16 in
Overall Length
1 in
For Minimum Ground Conductor Wire Size
4 AWG SOL
For Maximum Ground Conductor Wire Size
2/0 AWG STR
Overall Height
1 3/4 in
Dimension - Width mm
40 mm
Conductor - Copper Str Size
4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
Dimension - Length Overall inch
1.00 in
Height
1.74 in
Conductor - Copper Solid Size
4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
Conductor - Copper Solid Size Range
4 AWG-2/0 AWG
Dimension - L Length Overall mm
25 mm
Dimension - Width inch
1.57 in
Dimension - Height inch
1.74 in
Conductor - Copper Str Size Range
4 AWG-2/0 AWG
Dimensions
1 in x 1.57 in x 1.74 in

Description

Grounding Connector, Grounding Wire Size 4 to 2/0 AWG SOL, 4 to 2/0 AWG STR, Material Copper, Number of Wires - Grounding 2, Description/Special Features Direct Burial, For Maximum Ground Conductor Wire Size 2/0 AWG STR, For Minimum Ground Conductor Wire Size 4 AWG SOL, For Use With Copper Conductors, Flat Bar, Grounding Wires Connected To 1/4 in Bar, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical, Accessory Type Grounding Connector, Overall Height 1 3/4 in
