  11. Insulated Multitap Connector, 1.52 In. L

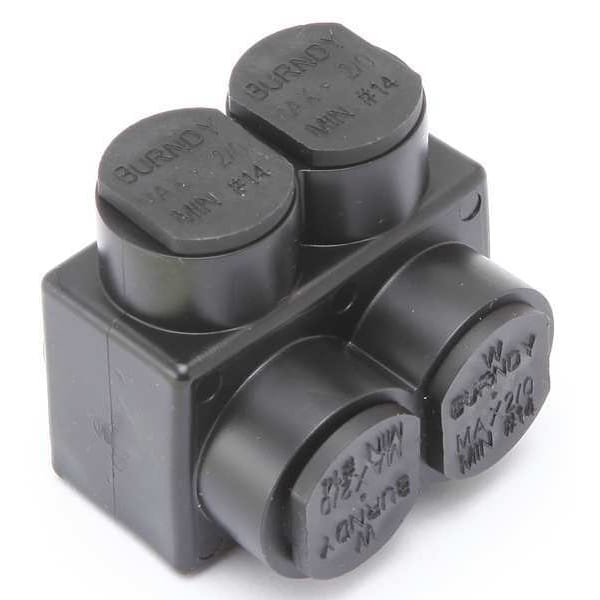

Burndy Insulated Multitap Connector, 1.52 In. L 1PL2/02 - main

Insulated Multitap Connector, 1.52 In. L

  • Mfr # 1PL2/02

  • Zoro # G4671484

product price: $20.65
/ea

Key Features

Connector Type
Single-Sided Entry
For Wire Size
2/0 AWG
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1PL2/02
Zoro #
G4671484
UPC #
781810555101
Country of Origin
United States

Dimensions

For Wire Size
2/0 AWG
Hex Size
3/16 in
Stud Size
3/16 in
Min. Conductor Size
14 AWG
Max. Conductor Size
2/0 AWG
Width
1.4 in
Length
1.52 in
Length (Straight Wireway)
1.52 in
Overall Length
1.52 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Width
1.4 in
For Stranded Copper Wire Size - Maximum
2/0 AWG
Conductor Size
14-2/0 AWG
Dimension - Height fraction
1.375 in
Conductor - AL Str Size Range
14 AWG-2/0 AWG
Conductor - Copper Str Size Range
14 AWG-2/0 AWG
Dimension - Height inch
1.38 in
Dimension - Screw Size inch
44930
Dimension - Width fraction
1-2/5 in
Dimension - Width mm
36 mm
Dimension - Width inch
1.40 in
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
Dimension - Length Overall inch
1.52 in
Dimension - L Length Overall mm
39 mm
Conductor - AL Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG

Details

Item
Insulated Multitap Connector
Connector Type
Single-Sided Entry
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Direct Burial Rated
No
Torque
120 in-lb
Head Style
Hex
Finish
Unplated
Color
Black
Maximum Operating Temperature
194 Degrees F
Standards
UL Listed
No. of Ports
2
Max. Voltage
600V AC/DC
Screw Material
Aluminum
Material
Aluminum
Compatible with Product Type
Code Conductor
Special Features
Insulated, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Saves Time By Eliminating The Need For Taping, UV Rated
Minimum Operating Temperature
-40 Degrees F
Maximum Voltage
600 V
RoHS Compliant
Yes
Tap Shape
L
Type
BIBS, Multi-Port
Physical Attribute - Number of Screws
2
Insulation Type
Plastisol
Installation Torque Recommended in-lb
120 in-lb
Plated
N
Conductor Type
AL C Str-SizeCU C Str-Size
Certification - CSA Approved
No
Material - Hardware
Aluminum
Hex Key
45001
Application
For Indoor Use Only, Copper Or Stranded Aluminum
UL Listed
Yes
Insulation
Y
Rating - Minimum Voltage
600
Trade Name
UNITAPâ„¢
Temperature Rating
194° F
Certification - UL Listed Direct Burial
No
Plating Type
Unplated
Voltage - Maximum
600 V

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
