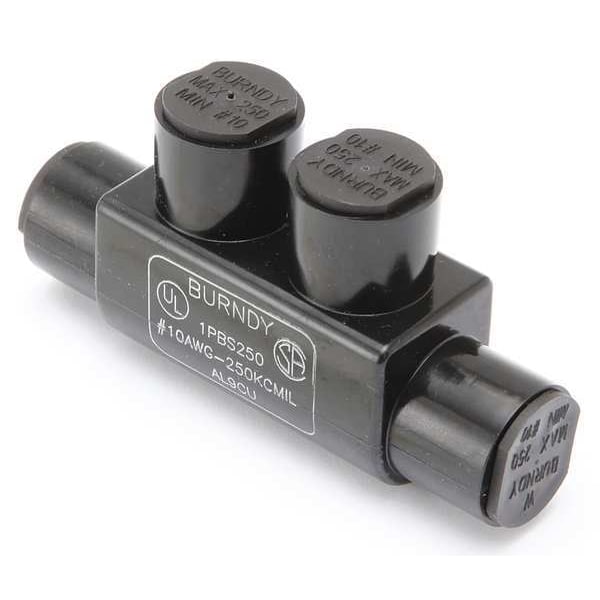

Insulated Multitap Connector, 4.01 In. L
Mfr # 1PBS250
Zoro # G4677093
product price: $36.85
/eaKey Features
Connector Type
Double-Sided Entry
For Wire Size
250 kcmil
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1PBS250
Zoro #
G4677093
UPC #
781810555132
Country of Origin
United States
Dimensions
For Wire Size
250 kcmil
Hex Size
5/16 in
Min. Conductor Size
10 AWG
Length
4.01 in
Stud Size
5/16 in
Max. Conductor Size
250 kcmil
Width
2.1 in
Length (Straight Wireway)
4.01 in
Overall Width
1.19 in
Strip Length
1 3/16 in
Overall Length
4.01 in
For Stranded Copper Wire Size - Maximum
250 kcmil
For Stranded Copper Wire Size - Minimum
10 AWG
Conductor Size
10 AWG-250 KCMIL
Dimension - L Length Overall mm
102 mm
Conductor - AL Str Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - Copper Str Size Range
10 AWG-250 kcmil
Dimension - Height inch
2.10 in
Dimension - Width mm
30 mm
Dimension - Width fraction
1-19/100 in
Dimension - Length Overall inch
4.01 in
Conductor - Copper Str Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Dimension - Screw Size inch
45054
Conductor - AL Str Size Range
10 AWG-250 kcmil
Dimension - Width inch
1.19 in
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
