  11. Insulated Multitap Connector, 6.30 In. W

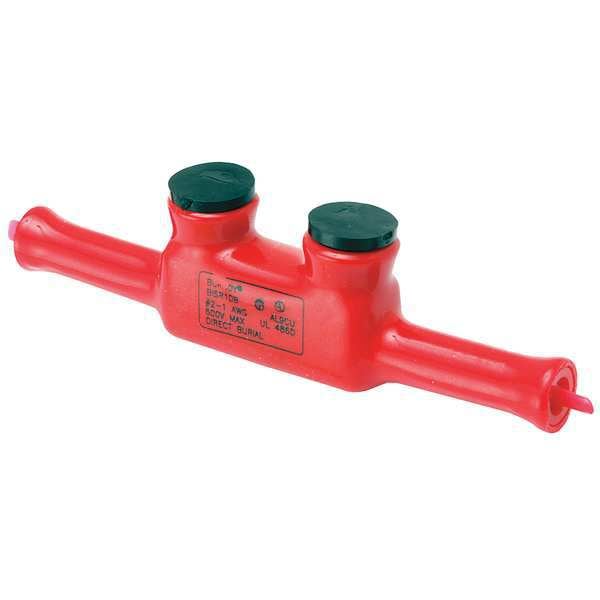

Burndy Insulated Multitap Connector, 6.30 In. W BISR1DB - main

Insulated Multitap Connector, 6.30 In. W

  • Mfr # BISR1DB

  • Zoro # G4682641

product price: $57.55
/ea

Key Features

Connector Type
Double-Sided Entry
For Wire Size
1 AWG
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BISR1DB
Zoro #
G4682641
UPC #
781810555323
Country of Origin
United States

Dimensions

For Wire Size
1 AWG
Hex Size
5/32 in
Stud Size
5/16 in
Min. Conductor Size
2 AWG
Width
1.59 in
Length
6.3 in
Max. Conductor Size
1 AWG
Length (Straight Wireway)
6.3 in
For Stranded Copper Wire Size - Minimum
2 AWG
Overall Length
6.3 in
For Stranded Copper Wire Size - Maximum
1 AWG
Overall Width
0.88 in
Strip Length
7/8 in
Conductor Size
2-1 AWG
Dimension - Height inch
1.75 in
Conductor - AL Str Size
2 AWG;1 AWG
Dimension - Strip Length inch
7/8 in
Conductor - Copper Str Size
#2 AWG;#1 AWG
Dimension - Width inch
0.88 in
Dimension - Screw Size inch
45062
Dimension - Width mm
22.3 mm
Conductor - Copper Str Size Range
2 - 1 Str
Dimension - Length Overall inch
6.3 in
Conductor - AL Str Size Range
2 - 1 Str
Dimension - L Length Overall mm
160 mm

Details

Item
Insulated Multitap Connector
Connector Type
Double-Sided Entry
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Direct Burial Rated
Yes
Torque
130 in-lb
Head Style
Hex
Finish
Unplated
Color
Red
Maximum Operating Temperature
194 Degrees F
Standards
UL 486A, UL 486B, UL Listed
Max. Voltage
600V AC/DC
Screw Material
Aluminum
No. of Ports
2
Material
Aluminum
Maximum Voltage
600 V
Tap Shape
T
Special Features
Insulated, Oxide Inhibitor Pre-Installed Preventing Moisture and Contaminants From Entering Contact Area, Saves Time
RoHS Compliant
Yes
Type
BISR
Trade Name
UNITAPâ„¢
Operating Voltage
600 V
Rating - Minimum Voltage
600
Application
For Outside Direct Burial
Voltage - Maximum
600 V
Insulation Type
Plastisol
Plated
N
Physical Attribute - Screw Type
Allen
Physical Attribute - Number of Screws
2
Conductor Type
AL C Str-SizeCU C Str-Size
Standards - Industry Standards Met
UL468A-468B
UL Listed
Yes
Industry Standard(s)
UL468A-468B
Insulation
Y
Installation Torque Recommended in-lb
130 in-lb
Temperature Rating
90 °C
Certification - UL Listed Direct Burial
Yes
Hex Key
5/32 in
Plating Type
Unplated
Certification - CSA Approved
No

Description

Insulated Multitap Connector, Body Material Aluminum, Color Red, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, Head Style Hex, Hex Size 5/32 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL 486A, UL 486B, UL Listed, Connector Type Double-Sided Entry
