  11. Insulated Multitap Connector, 6.70 In. L

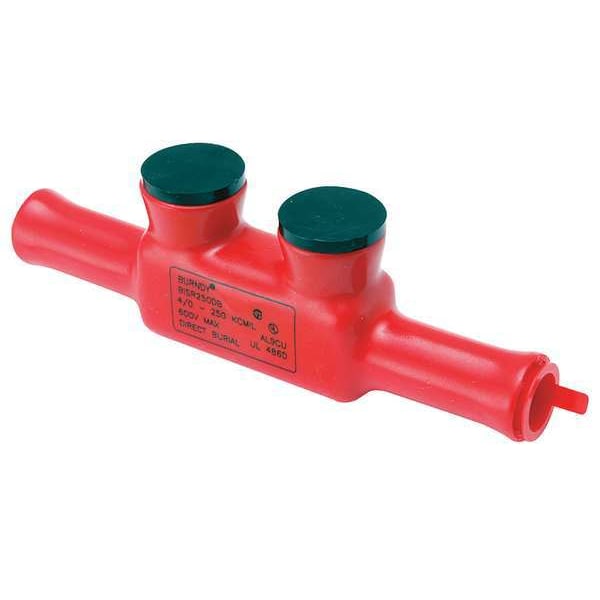

Burndy Insulated Multitap Connector, 6.70 In. L BISR250DB - main

Insulated Multitap Connector, 6.70 In. L

  • Mfr # BISR250DB

  • Zoro # G4667695

product price: $69.95
/ea

Key Features

Connector Type
Double-Sided Entry
For Wire Size
250 kcmil
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BISR250DB
Zoro #
G4667695
UPC #
781810555316
Country of Origin
United States

Dimensions

For Wire Size
250 kcmil
Hex Size
5/16 in
Min. Conductor Size
4/0
Stud Size
5/16 in
Width
2.17 in
Length
6.7 in
Max. Conductor Size
250 kcmil
Length (Straight Wireway)
6.7 in
Overall Width
1.18 in
Overall Length
6.7 in
For Stranded Copper Wire Size - Minimum
4/0 AWG
For Stranded Copper Wire Size - Maximum
250 kcmil
Strip Length
7/8 in
Conductor Size
4/0 AWG-250 KCMIL
Conductor - Copper Str Size Range
4/0 - 250 Str
Dimension - Strip Length inch
7/8 in
Conductor - Copper Str Size
4/0 AWG;250 kcmil
Dimension - L Length Overall mm
170.18 mm
Conductor - AL Str Size Range
4/0 - 250 Str
Dimension - Screw Size inch
45054
Dimension - Height inch
2.17 in
Dimension - Width inch
1.18 in
Dimension - Width mm
29.97 mm
Conductor - AL Str Size
4/0;250 kcmil
Dimension - Length Overall inch
6.7 in

Details

Item
Insulated Multitap Connector
Connector Type
Double-Sided Entry
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Direct Burial Rated
Yes
Torque
360 in-lb
Head Style
Hex
Finish
Unplated
Color
Red
Maximum Operating Temperature
194 Degrees F
Standards
UL 486A, UL 486B, UL Listed
No. of Ports
2
Screw Material
Aluminum
Max. Voltage
600V AC/DC
Material
Aluminum
Tap Shape
T
Special Features
Insulated, Oxide Inhibitor Pre-Installed Preventing Moisture and Contaminants From Entering Contact Area, Saves Time
RoHS Compliant
Yes
Maximum Voltage
600 V
Type
BISR
Standards - Industry Standards Met
UL468A-468B
Voltage - Maximum
600 V
Item Type
3B
Temperature Rating
90 °C
Hex Key
5/16 in
Certification - CSA Approved
No
Application
For Outside Direct Burial
Conductor Type
AL C Str-SizeCU C Str-Size
Operating Voltage
600 V
Rating - Minimum Voltage
600
Installation Torque Recommended in-lb
360 in-lb
Trade Name
UNITAPâ„¢
Insulation
Y
Industry Standard(s)
UL468A-468B
Plating Type
Unplated
UL Listed
Yes
Physical Attribute - Number of Screws
2
Insulation Type
Plastisol
Certification - UL Listed Direct Burial
Yes
Plated
N
Physical Attribute - Screw Type
Allen

Description

Insulated Multitap Connector, Body Material Aluminum, Color Red, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL 486A, UL 486B, UL Listed
