  11. Long-Barrel Splice, 3/0 AWG Wire Gauge
Shop All Crimp Sleeves
Burndy

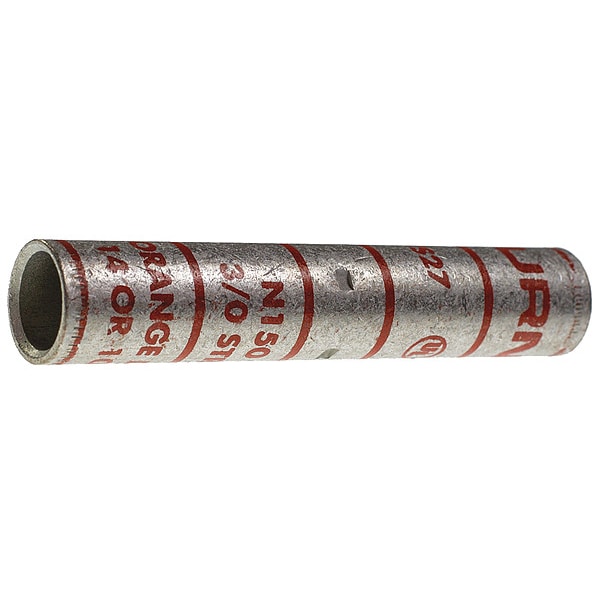

Long-Barrel Splice, 3/0 AWG Wire Gauge

product price: $7.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wire Gauge 3/0 AWG
  • Color Code Orange
  • Die Code 14
  • Material Copper
  • Length 3.3 in
See all product information

Product Information

  • Brand Burndy
  • MFR # YS27
  • Zoro # G5522303
  • UPC #
    781810507704
  • Country of Origin United States
  • Category Crimp Sleeves

Dimensions

Length 3.3 in
Outside Dia. 0.62 in
Barrel Outside Diameter 0.62 in
Minimum Wire Size 3/0 AWG
Maximum Wire Size 3/0 AWG
Maximum Wire Insulation Diameter 0.62 in
Barrel Size Long
Overall Length 3.3 in
Strip Length 1 9/16 in

Details

Item Long-Barrel Splice
Wire Gauge 3/0 AWG
Color Code Orange
Die Code 14
Material Copper
Standards CSA Certified, UL Listed
For Conductor Material Copper
Maximum Operating Temperature 194 Degrees F
RoHS Compliant Yes
For Wire Type Stranded
Special Features Center Conductor Stops, High Pull Out Force, Oil Stop: No; Tapered End: No
Maximum Conductors 2
Compatible Installation Tool Model Number MD6, MD7-34R, OUR840, PAT81KFT-18V, Y35, Y39, Y46, Y750, Y81KFT, Y81KFTMBH
Termination Style Crimp
Barrel Finish Tin Plated
Maximum Voltage 35 kV
Number of Crimps 2
Contact Finish Tin
Contact Material Copper
Seam Style Seamless

Description

Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Orange, Die Code 14, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Number of Crimps 2, Overall Length 3.3 in, Maximum Conductors 2, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.62 in
