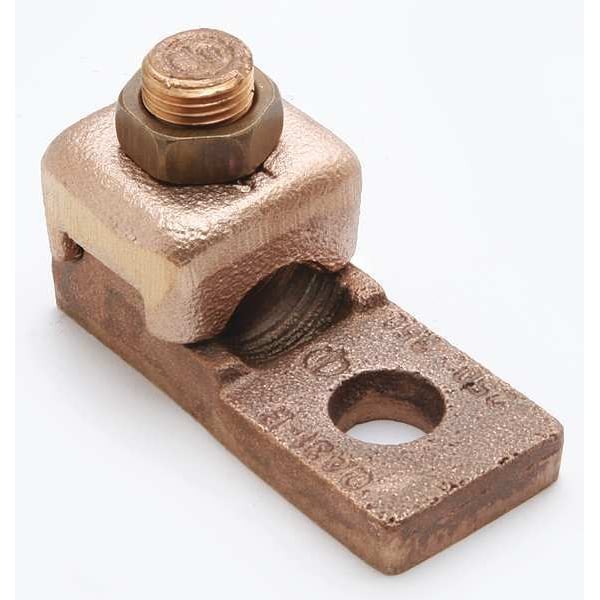

Mechanical Lug, 1 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper
Mfr # QA1CB
Zoro # G4667643
product price: $50.35
/eaKey Features
For Conductor Material
Copper
For Minimum Wire Size
4 AWG
For Maximum Wire Size
1 AWG
Number of Conductors
1
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QA1CB
Zoro #
G4667643
UPC #
781810553589
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
4 AWG
For Maximum Wire Size
1 AWG
For Stud Size
1/4 in
Hole Diameter
0.28 in
Tongue Width
0.63 in
Min. Conductor Size
4 AWG Stranded
Length
1.75 in
Width
1.0 in
Stud Size
1/4 in
Max. Conductor Size
1 AWG Stranded
Length (Straight Wireway)
1.75 in
For Stranded Copper Wire Size - Minimum
4 AWG
Overall Width
1 in
Overall Depth
5/8 in
For Stranded Copper Wire Size - Maximum
1 AWG
Tongue Length
0.75 in
Overall Length
1.75 in
Tongue Thickness
0.22 in
Conductor Size
4-1 AWG
Dimension - Pad Width inch
0.62 in
Dimension - Height inch
1.00 in
Conductor - Copper Str Size Range
4 AWG-1 AWG
Dimension - D inch
0.75 in
Dimension - Stud Size inch
44930
Dimension - Hole Size inch
0.28 in
Dimension - Height fraction
1 in
Dimension - Length Overall inch
1.75 in
Dimension - N inch
0.34 in
Conductor - Copper Str Navy Size Range
30 (19) Navy-75 (37) Navy
Dimension - Hole Size mm
7 mm
Dimension - L Length Overall mm
44 mm
Dimension - Hole Size fraction
11933
Conductor - Copper Str Size
4 AWG;3 AWG;2 AWG;1 AWG
Dimension - Bolt Size fraction
2023-01-04
Conductor - Copper Str Navy Size
30 (19) Navy;40 (19) Navy;50 (19) Navy;60 (37) Navy;75 (37) Navy
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, For Stud Size 1/4 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.28 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.75 in, Tongue Width 0.63 in, Tongue Thickness 0.22 in, Connector Type Terminal
