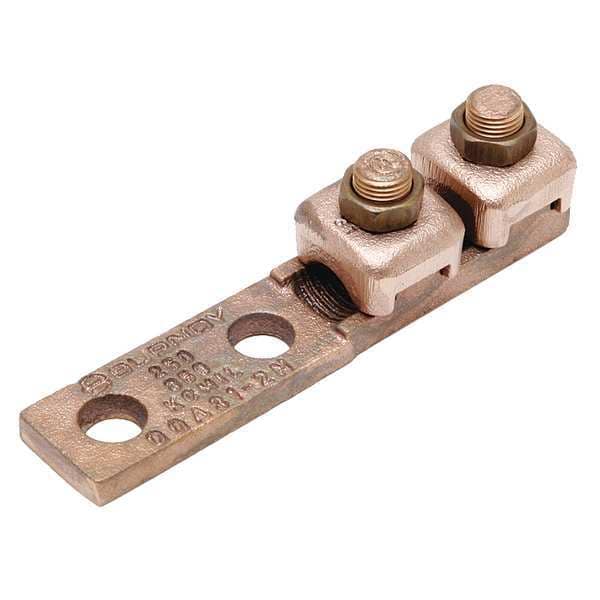

Mechanical Lug, 1 AWG Max, 1 Conductor, 2 Hole, 5/16 in Stud, Copper
Mfr # QQA1C2
Zoro # G4687426
product price: $84.55
/ea
Free Shipping & Returns
Key Features
No. of Conductors
1
Min. Conductor Size
4 AWG Stranded
Max. Conductor Size
1 AWG Stranded
Number of Holes
2
Stud Size
5/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QQA1C2
Zoro #
G4687426
UPC #
781810553855
Country of Origin
Mexico
Dimensions
Min. Conductor Size
4 AWG Stranded
Max. Conductor Size
1 AWG Stranded
Stud Size
5/16 in
Length
3.63 in
Width
1.0 in
Length (Straight Wireway)
3.63 in
Tongue Length
1.56 in
Tongue Thickness
0.22 in
Hole Diameter
0.34 in
Tongue Width
0.63 in
For Stranded Copper Wire Size - Minimum
4 AWG
Overall Width
1 in
Overall Length
3.63 in
Overall Depth
5/8 in
For Stud Size
5/16 in
For Stranded Copper Wire Size - Maximum
1 AWG
Conductor Size
4-1 AWG
Dimension - Hole Size mm
9 mm
Dimension - Pad Width inch
0.63 in
Dimension - D inch
1.56 in
Dimension - Bolt Size fraction
2023-05-16
Dimension - Length Overall inch
3.63 in
Dimension - N inch
0.34 in
Dimension - Hole Size inch
0.34 in
Dimension - Height inch
1.00 in
Conductor - Copper Str Navy Size
40 (19) Navy;50 (19) Navy;60 (37) Navy;75 (37) Navy
Dimension - F Width Center to Center inch
0.9
Conductor - Copper Str Size
4 AWG;3 AWG;2 AWG;1 AWG
Conductor - Copper Str Navy Size Range
40 (19) Navy-75 (37) Navy
Conductor - Copper Str Size Range
4 AWG-1 AWG
Dimension - L Length Overall mm
92 mm
Dimension - Height fraction
1 in
For Minimum Wire Size
4 AWG
For Maximum Wire Size
1 AWG
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, For Stud Size 5/16 in, Head Style Double Hex Head, Number of Holes 2, Hole Diameter 0.34 in, Hole Spacing 0.88 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.56 in, Tongue Width 0.63 in, Tongue Thickness 0.22 in, Connector Type Terminal
