  11. Mechanical Lug, 1 AWG Max, 2 Conductor, 2 Hole, 3/8 in Stud, Copper

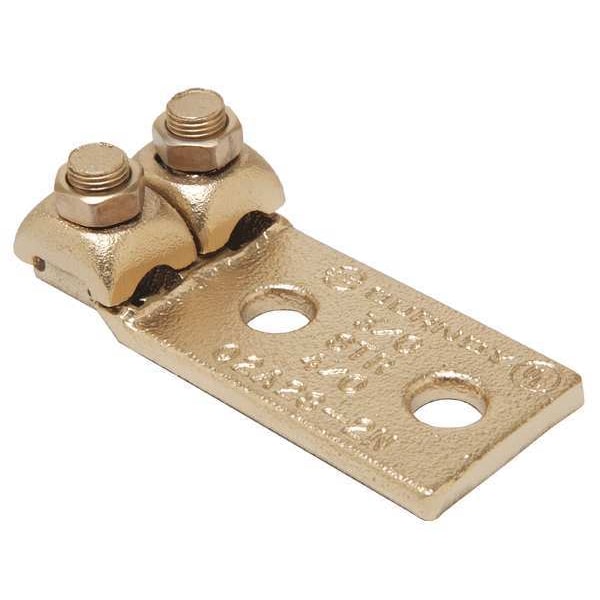

Burndy Mechanical Lug, 1 AWG Max, 2 Conductor, 2 Hole, 3/8 in Stud, Copper Q2A1C2 - main

Mechanical Lug, 1 AWG Max, 2 Conductor, 2 Hole, 3/8 in Stud, Copper

  • Mfr # Q2A1C2

  • Zoro # G4682027

product price: $139.64
/ea
Free Shipping & Returns

Key Features

No. of Conductors
2
Min. Conductor Size
4 AWG Stranded
Max. Conductor Size
1 AWG Stranded
Number of Holes
2
Stud Size
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Q2A1C2
Zoro #
G4682027
UPC #
781810553879
Country of Origin
Mexico

Dimensions

Min. Conductor Size
4 AWG Stranded
Max. Conductor Size
1 AWG Stranded
Stud Size
3/8 in
Length
2.88 in
Width
1.81 in
Length (Straight Wireway)
2.88 in
Overall Depth
1 1/2 in
Tongue Thickness
0.22 in
For Stranded Copper Wire Size - Maximum
1 AWG
For Stranded Copper Wire Size - Minimum
4 AWG
Overall Length
2.88 in
Tongue Length
1.88 in
For Stud Size
3/8 in
Hole Diameter
0.44 in
Tongue Width
1.50 in
Overall Width
1.06 in
Conductor Size
4-1 AWG
Dimension - F Width Center to Center inch
1.00 in
Dimension - Length Overall inch
2.88 in
Dimension - Width inch
1.81 in
Dimension - Width fraction
1-13/16 in
Dimension - L Length Overall mm
73 mm
Dimension - Hole Size fraction
45123
Dimension - Stud Size inch
44993
Dimension - B Length inch
0.88 in
Dimension - Hole Size mm
11 mm
Dimension - Pad Width inch
1.50 in
Dimension - D inch
1.88 in
Dimension - Height fraction
1-1/16 in
Dimension - Bolt Size fraction
2023-03-08
Dimension - Height inch
1.06 in
Conductor - Copper Str Size Range
4 AWG-1 AWG
Dimension - Hole Size inch
0.44 in
Dimension - N inch
0.44 in
Conductor - Copper Str Size
4 AWG;3 AWG;2 AWG;1 AWG
For Minimum Wire Size
4 AWG
For Maximum Wire Size
1 AWG

Details

Item
Mechanical Lug
No. of Conductors
2
Number of Holes
2
Material
Copper
Standards
UL Listed
Body Material
Copper
Head Style
Hex
Maximum Operating Temperature
194 Degrees F
Hole Spacing
1 in
Contact Finish
Unplated
Number of Terminations
2
Maximum Voltage
600 V
Special Features
Accommodates a Wide Range of Cable
Number of Conductors
2
Torque
150 in-lb
For Conductor Material
Copper
Compatible with Product Type
Copper Cable
Type
Bolted Lugs & Terminals
Certification - CSA Approved
No
UL Listed
Yes
Physical Attribute - Screw Type
Hexagonal Bolt
Industry Standard(s)
UL468A-468B
Application
For Copper Cable
Physical Attribute - Number of Screws
2
Plating Type
Unplated
Trade Name
QIKLUGâ„¢
Plated
N
Temperature Rating
194
Physical Attribute - Number of Holes
2
Conductor Type
CU C Str-Size
Installation Torque Recommended in-lb
150 LBS/in
Rating - Minimum Voltage
600
Certification - UL Listed Direct Burial
No

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 2, Hole Diameter 0.44 in, Hole Spacing 1 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 1.88 in, Tongue Width 1.5 in, Tongue Thickness 0.22 in, Connector Type Terminal
