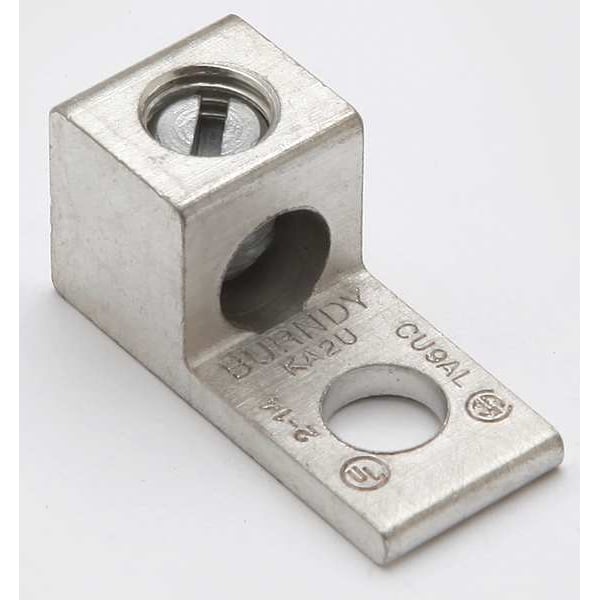

Mechanical Lug, 2 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum
Mfr # KA2U
Zoro # G4681677
CAD Available
product price: $2.89
/eaKey Features
CAD Drawing
No. of Conductors
1
Min. Conductor Size
14 AWG Stranded
Max. Conductor Size
2 AWG Stranded
Number of Holes
1
Stud Size
1/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KA2U
Zoro #
G4681677
UPC #
781810559086
Country of Origin
Mexico
Dimensions
Min. Conductor Size
14 AWG Stranded
Max. Conductor Size
2 AWG Stranded
Stud Size
1/4 in
Length
1.16 in
Width
0.56 in
Length (Straight Wireway)
1.16 in
Hole Diameter
0.27 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Depth
1/2 in
For Stud Size
1/4 in
Tongue Length
0.63 in
Tongue Thickness
0.1 in
Overall Length
1.16 in
Overall Width
0.56 in
Tongue Width
0.51 in
For Stranded Copper Wire Size - Maximum
2 AWG
Conductor Size
14-2 AWG
Dimension - Bolt Hole Size inch
0.25 in
Dimension - D inch
0.63 in
Conductor - AL Str Size
8;6;4;3;2
Dimension - Length Overall inch
1.16 in
Dimension - Height inch
0.56 in
Dimension - L Length Overall mm
29 mm
Dimension - Width mm
13 mm
Dimension - Height fraction
14/25 in
Conductor - Copper Str Size
14;12;10;9;8;7;6;5;4;3;2
Dimension - Hole Size mm
7 mm
Conductor - Copper Str Size Range
14-2
Dimension - Stud Size inch
44930
Conductor - AL Str Size Range
45140
Dimension - Width inch
0.50 in
Dimension - Pad Width inch
0.51 in
Dimension - Hole Size inch
0.27 in
Dimension - N inch
0.31 in
Dimension - Width fraction
1/2 in
Dimension - Bolt Size fraction
2023-01-04
Conductor - Nominal Diameter
0.072, 0.091, 0.116, 0.130, 0.146, 0.164, 0.184, 0.184, 0.184, 0.184, 0.184, 0.206, 0.232, 0.232, 0.260, 0.260, 0.292, 0.320
For Maximum Wire Size
2 AWG
For Minimum Wire Size
14 AWG
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.63 in, Tongue Width 0.51 in, Tongue Thickness 0.1 in
