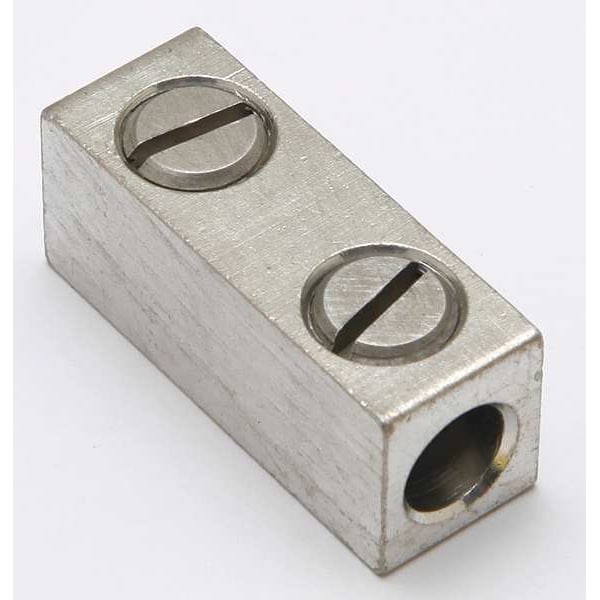

Mechanical Lug, 2 AWG Max, 2 Conductor, 3/8 in Stud, Aluminum
Mfr # AMS2
Zoro # G4705005
product price: $8.99
/eaKey Features
Connector Type
Splice/Reducer
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
2 AWG
Number of Conductors
2
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- AMS2
- Zoro #
- G4705005
- UPC #
- 781810554531
- Country of Origin
- United States
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 2 AWG
- For Stud Size
- 3/8 in
- Min. Conductor Size
- 14 AWG Stranded
- Max. Conductor Size
- 2 AWG Solid and Stranded
- Length
- 1.59 in
- Width
- 0.56 in
- Length (Straight Wireway)
- 1.59 in
- Overall Depth
- 9/16 in
- Overall Length
- 1.59 in
- For Stranded Copper Wire Size - Maximum
- 2 AWG
- Overall Width
- 0.56 in
- For Stranded Copper Wire Size - Minimum
- 14 AWG
- Conductor Size
- 14-2 AWG
- Hex Size
- Slot
- Depth
- 0.56 in
- Dimension - Width mm
- 14 mm
- Conductor - ACSR Cmpt Size
- 2 AWG
- Dimension - Length Overall inch
- 1.59 in
- Conductor - AL Str Size
- 12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Compact Size
- 2 AWG
- Conductor - Copper Solid Size Range
- 12 AWG-2 AWG
- Conductor - ACSR Str Size
- 2 AWG-1 AWG
- Conductor - Copper Solid Size
- 12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AL Str Size Range
- 12 AWG-2 AWG
- Dimension - H1 Height inch
- 0.56 in
- Dimension - L Length Overall mm
- 40 mm
- Die Size
- EEI 11ABurndy WK840Burndy 249Kearney 840T&B TXT&B 76
- Dimension - Width inch
- 0.56 in
- Dimension - Height fraction
- 45185
- Dimension - Width fraction
- 9/16 in
- Conductor - Copper Str Size Range
- 14 AWG-2 AWG
- Conductor - Copper Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Tongue Length
- 1.59 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, For Stud Size 3/8 in, Head Style Slotted, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Width Not Applicable, Tongue Thickness Not Applicable
