  11. Mechanical Lug, 2 Conductor, 5/16 in Stud, Copper

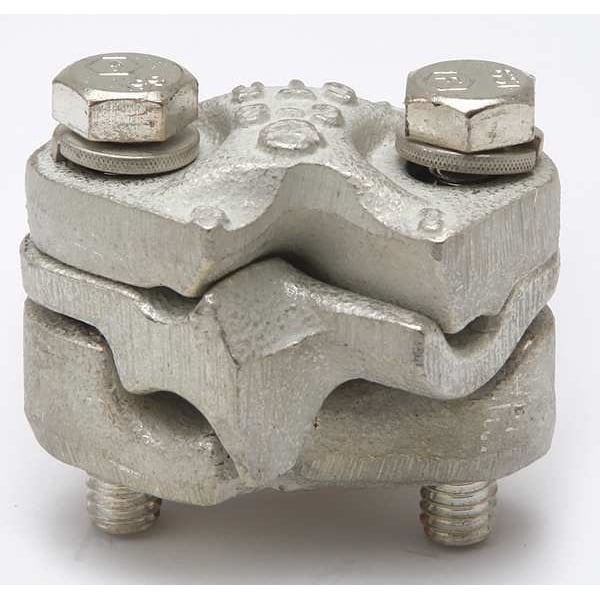

Burndy Mechanical Lug, 2 Conductor, 5/16 in Stud, Copper QPX282CY - main

Mechanical Lug, 2 Conductor, 5/16 in Stud, Copper

  • Mfr # QPX282CY

  • Zoro # G4696456

product price: $112.99
/ea
Free Shipping & Returns

Key Features

No. of Conductors
2
Min. Conductor Size
1/0 AWG (Run) Stranded, 6 AWG (Tap)
Max. Conductor Size
2 AWG (Tap), 4/0 AWG (Run) Stranded
Material
Copper
Length
1.88 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QPX282CY
Zoro #
G4696456
UPC #
781810554425
Country of Origin
United States

Dimensions

Min. Conductor Size
1/0 AWG (Run) Stranded, 6 AWG (Tap)
Max. Conductor Size
2 AWG (Tap), 4/0 AWG (Run) Stranded
Length
1.88 in
Width
1.84 in
Length (Straight Wireway)
1.88 in
Overall Width
1.88 in
Overall Depth
1 7/8 in
For Stud Size
5/16 in
For Stranded Copper Wire Size - Maximum
2 AWG
For Stranded Copper Wire Size - Minimum
6 AWG
Overall Length
1.5 in
Dimension - Height fraction
1-7/8 in
Dimension - Width inch
1.84
Dimension - L Length Overall mm
38 mm
Dimension - Height inch
1.88
Dimension - Length Overall inch
1.50 in
Dimension - Width fraction
1-7/8 in
Dimension - Width mm
47 mm

Details

Item
Mechanical Lug
No. of Conductors
2
Material
Copper
Head Style
Hex
Body Material
Copper
Special Features
Edges Rounded For Easy Taping, Makes Parallel, Tap, Tee, Cross Or End-To-End Connections
Contact Finish
Tin
Compatible with Product Type
Aluminum Cable, Copper Cable
Maximum Voltage
600 V
Torque
150 in-lb
Number of Conductors
2
Maximum Operating Temperature
194 Degrees F
For Conductor Material
Aluminum, Copper
Number of Terminations
2
Type
QPX-Y, Universal
Plated
Y
Conductor - Copper Str Run Range
1/0 -4/0 AWG
Item Type
3B
Conductor - AL Str Run Range
1/0 AWG-4/0 AWG
Conductor - AL Str Tap
6 AWG;4 AWG;3 AWG;2 AWG
Temperature Rating
194
Certification - UL Listed Direct Burial
No
Application
For Use With Copper Or Aluminum Cable
Conductor - Copper Str Tap
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Certification - CSA Approved
No
Conductor - AL Str Run
1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Physical Attribute - Screw Type
Hexagonal Bolt
Plating Type
Tin
Installation Torque Recommended in-lb
150 LBS/in
Conductor - Copper Str Run
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Material - Hardware
DURIUMâ„¢ Silicon Bronze
UL Listed
No
Rating - Minimum Voltage
600
Conductor - Copper Str Tap Range
6 AWG-2 AWG
Conductor - AL Str Tap Range
6 AWG-2 AWG
Connector Type
Parallel Clamp

Description

Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, For Stud Size 5/16 in, Head Style Hex, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Width Not Applicable, Tongue Thickness Not Applicable
