  11. Mechanical Lug, 250 kcmil Max, 1 Conductor, 1/4 in Stud, Aluminum

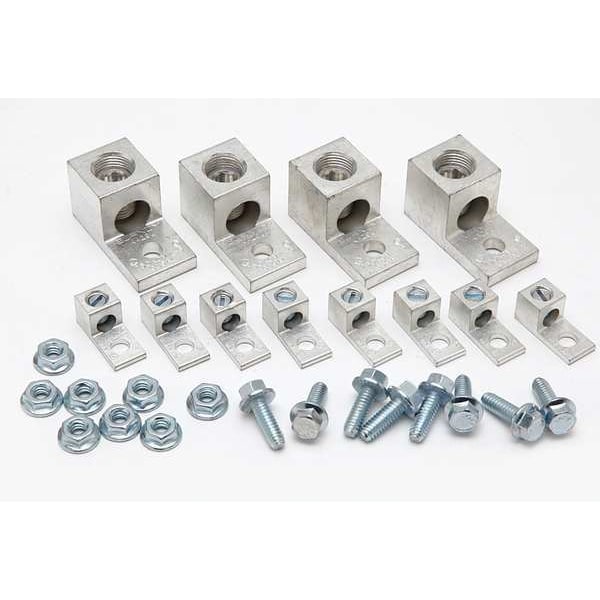

Burndy Mechanical Lug, 250 kcmil Max, 1 Conductor, 1/4 in Stud, Aluminum KAUKIT1 - main

Mechanical Lug, 250 kcmil Max, 1 Conductor, 1/4 in Stud, Aluminum

  • Mfr # KAUKIT1

  • Zoro # G4696492

product price: $68.36
/ea

Key Features

No. of Conductors
1
Min. Conductor Size
14 AWG Stranded
Max. Conductor Size
250 kcmil Stranded
Material
Aluminum
Head Style
Hex
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KAUKIT1
Zoro #
G4696492
UPC #
781810559222
Country of Origin
Mexico

Dimensions

Min. Conductor Size
14 AWG Stranded
Max. Conductor Size
250 kcmil Stranded
Overall Depth
7 in
Overall Width
1.25 in
For Stud Size
1/4 in
Hole Diameter
0.27 in
Overall Length
7 in
Conductor - AL Str Size
8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
For Maximum Wire Size
250 kcmil
For Minimum Wire Size
14 AWG
For Stranded Copper Wire Size - Maximum
250 kcmil
For Stranded Copper Wire Size - Minimum
14 AWG

Details

Item
Mechanical Lug
No. of Conductors
1
Material
Aluminum
Head Style
Hex
Body Material
Aluminum
Number of Conductors
1
Contact Finish
Tin
Includes
(4) KA29U, (8) 1/4-20 in Hex Head Nut, (8) 1/4-20 x 3/4 in Hex Head Bolt, (8) KA2U, Captive to Nut
Special Features
Compensates For Dissimilar Metal Expansion And Contraction, Plated Steel Cap Screws, Provide Low Contact Resistance
Compatible with Product Type
Aluminum Cable, Copper Cable
For Conductor Material
Aluminum, Copper
Type
Bolted Lugs & Terminals
UL Listed
No
Application
used to provide low contact resistance
Certification - UL Listed Direct Burial
No
Certification - CSA Approved
No
Package Contents
(8) KA2U , (4) KA29U;(8) 1/4-20 x 3/4 in Hex Head Bolt;(8) 1/4-20 in Hex Head Nut;Captive to Nut

Description

Transformer Lug Kit, Type Commercial, Min. Conductor Size (AWG) 14, Max. Conductor Size 250 kcmil
