  11. Mechanical Lug, 250 kcmil Max, 2 Hole, Not Applicable Stud, Aluminum, Copper

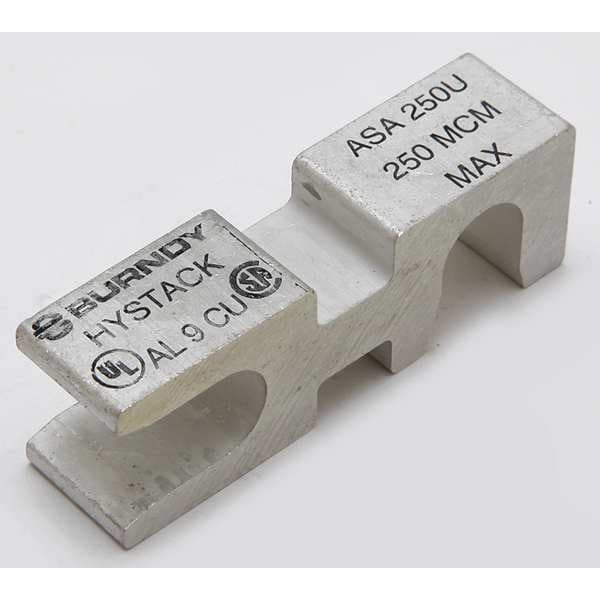

Burndy Mechanical Lug, 250 kcmil Max, 2 Hole, Not Applicable Stud, Aluminum, Copper ASA250U - main

Mechanical Lug, 250 kcmil Max, 2 Hole, Not Applicable Stud, Aluminum, Copper

  • Mfr # ASA250U

  • Zoro # G4688616

product price: $13.45
/ea

Key Features

Min. Conductor Size
1/0 AWG Stranded
Max. Conductor Size
250 kcmil Stranded
Number of Holes
2
Material
Tin-Plated Aluminum
Length
1.0 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ASA250U
Zoro #
G4688616
UPC #
781810554708
Country of Origin
United States

Dimensions

Min. Conductor Size
1/0 AWG Stranded
Max. Conductor Size
250 kcmil Stranded
Length
1.0 in
Width
0.78 in
Length (Straight Wireway)
1.0 in
Tongue Width
1 in
Overall Width
1 in
Overall Depth
3/4 in
For Stranded Copper Wire Size - Maximum
250 kcmil
For Stranded Copper Wire Size - Minimum
1/0 AWG
Overall Length
0.78 in
Conductor - AL Str Size
1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - Copper Str Size
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Dimension - Height fraction
7/9 in
Dimension - L Length Overall mm
20 mm
Dimension - Outside Diameter inch
0.87 in
Dimension - Pad Width inch
1.00 in
Conductor - Copper Str Size Range
1/0 -250 kcmil
Dimension - Height inch
0.77 in
Conductor - AL Str Size Range
1/0 AWG-250 kcmil
Dimension - Bolt Size inch
2.75 in
Dimension - Length Overall inch
0.78 in
For Maximum Wire Size
250 kcmil
For Minimum Wire Size
1/0 AWG

Details

Item
Mechanical Lug
Number of Holes
2
Material
Tin-Plated Aluminum
Standards
CSA Certified
Body Material
Aluminum, Copper
For Conductor Material
Aluminum
Maximum Voltage
600 V
RoHS Compliant
Yes
Contact Finish
Tin
Maximum Operating Temperature
194 Degrees F
Special Features
The HYSTACK Adaptor Is Specially Designed To Allow Standard Terminals To Be Stacked On Two Or Four Hole NEMA Transformer Or Equipment Terminal Pads, HYSTACK Is Tin-Plated, High-Conductivity Aluminum To Provide Optimum Corrosion Resistance, Only Three Sizes Accommodate Terminals From 250 MCM Through 1000 MCM To Help Keep Costly Inventories To A Minimum
Type
Stacking Adapters
Certification - UL Listed Direct Burial
No
Conductor Type
AL C Str-SizeCU C Str-Size
Temperature Rating
194° F
Plating Type
Tin
Physical Attribute - Screw Type
Hexagonal Bolt
Physical Attribute - Number of Screws
2
Certification - CSA Approved
Yes
Rating - Minimum Voltage
600
Trade Name
HYSTACKâ„¢
Material - Hardware
DURIUMâ„¢ Silicon Bronze
Physical Attribute - Number of Holes
2
UL Listed
Yes
Installation Torque Recommended in-lb
480 LBS/in
Application
For Aluminum And Copper Terminals
Plated
Y
Number of Conductors
2

Description

Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size Not Applicable, Head Style Hex, Number of Holes 2, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations Not Applicable, Tongue Width 1 in, Tongue Thickness Not Applicable
