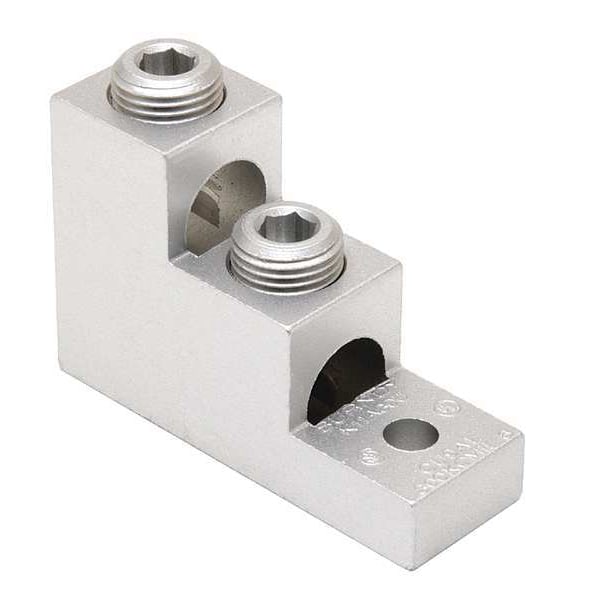

Mechanical Lug, 300 kcmil Max, 2 Conductor, 2 Hole, 5/16 in Stud, Aluminum
Mfr # K11A30U
Zoro # G4658561
CAD Available
product price: $29.89
/eaKey Features
CAD Drawing
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
4 AWG
For Maximum Wire Size
300 kcmil
Number of Conductors
2
Number of Terminations
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
K11A30U
Zoro #
G4658561
UPC #
781810559307
Country of Origin
United States
Dimensions
For Minimum Wire Size
4 AWG
For Maximum Wire Size
300 kcmil
For Stud Size
5/16 in
Hole Diameter
0.33 in
Tongue Width
1 in
Width
1 in
Max. Conductor Size
300 kcmil Stranded, 4/0 AWG Solid
Length
3.0 in
Min. Conductor Size
4 AWG Solid, 6 AWG Stranded
Stud Size
5/16 in
Length (Straight Wireway)
3.0 in
Overall Width
2.03 in
Tongue Thickness
0.31 in
For Stranded Copper Wire Size - Minimum
6 AWG
For Stranded Copper Wire Size - Maximum
300 kcmil
Tongue Length
0.94 in
Overall Depth
1 1/16 in
Overall Length
3 in
Conductor Size
6 AWG-300 KCMIL
Conductor - AL Str Size Range
6 Str.- 300 Kcmil
Dimension - Pad Width inch
1.02 in
Dimension - Bolt Hole Size inch
0.31 in
Dimension - Screw Size inch
45246
Dimension - Width inch
1.02 in
Conductor - Copper Solid Size
4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Dimension - L Length Overall mm
76 mm
Conductor - Copper Str Size Range
6 Str.- 300 Kcmil
Dimension - Length Overall inch
3.00 in
Dimension - Hole Size inch
0.33 in
Dimension - D inch
0.94 in
Conductor - AL Str Size
6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil
Dimension - N inch
0.47 in
Dimension - Stud Size fraction
45062
Dimension - Hole Size mm
8 mm
Dimension - Bolt Size fraction
45062
Conductor - Copper Solid Size Range
4 AWG-4/0 AWG
Dimension - Height inch
2.03 in
Conductor - Copper Str Size
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil
Dimension - Width mm
25 mm
Dimension - Height fraction
2 in
Dimension - Thread Size
5/16 in
Dimension - Stud Size inch
5/16 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 300 kcmil, For Stud Size 5/16 in, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.33 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 0.94 in, Tongue Width 1.02 in, Tongue Thickness 0.5 in
