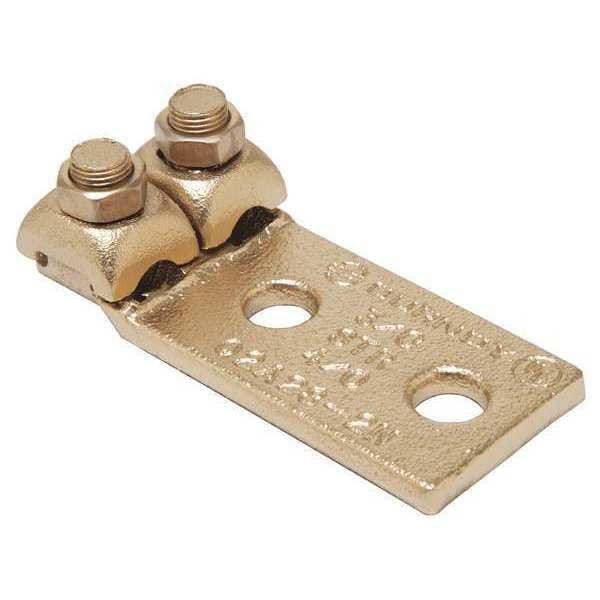

Mechanical Lug, 350 kcmil Max, 2 Conductor, 2 Hole, 1/2 in Stud, Copper
Mfr # Q2A312N
Zoro # G4669402
product price: $387.99
/ea
Free Shipping & Returns
Key Features
No. of Conductors
2
Min. Conductor Size
250 kcmil Stranded
Max. Conductor Size
350 kcmil Stranded
Number of Holes
2
Stud Size
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Q2A312N
Zoro #
G4669402
UPC #
781810553985
Country of Origin
Mexico
Dimensions
Min. Conductor Size
250 kcmil Stranded
Max. Conductor Size
350 kcmil Stranded
Stud Size
1/2 in
Length
4.5 in
Width
2.13 in
Length (Straight Wireway)
4.5 in
Tongue Length
3.09 in
For Stranded Copper Wire Size - Maximum
350 kcmil
Overall Length
4.44 in
Tongue Thickness
0.31 in
Overall Depth
2 11/16 in
Tongue Width
2.38 in
Hole Diameter
0.56 in
For Stranded Copper Wire Size - Minimum
250 kcmil
For Stud Size
1/2 in
Overall Width
1.69 in
Conductor Size
250-350 kcmil
Dimension - D inch
3.09 in
Dimension - Height inch
1.69 in
Dimension - Hole Size mm
14 mm
Dimension - Pad Width inch
2.69 in
Dimension - Hole Size fraction
45185
Dimension - N inch
0.63 in
Dimension - Length Overall inch
4.44 in
Conductor - Copper Str Size
250 kcmil;300 kcmil;350 kcmil
Dimension - Width fraction
2-1/8 in
Dimension - Height fraction
1-11/16 in
Conductor - Copper Str Size Range
250 kcmil-350 kcmil
Dimension - F Width Center to Center inch
0.75 in
Dimension - Stud Size inch
44928
Dimension - Bolt Size fraction
1 to 2
Dimension - B Length inch
1.19 in
Dimension - Width inch
2.13 in
Dimension - Hole Size inch
0.56 in
Dimension - L Length Overall mm
114 mm
For Minimum Wire Size
250 kcmil
For Maximum Wire Size
350 kcmil
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, For Stud Size 1/2 in, Head Style Hex, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 0.75 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 3.09 in, Tongue Width 2.38 in, Tongue Thickness 0.31 in, Connector Type Terminal
