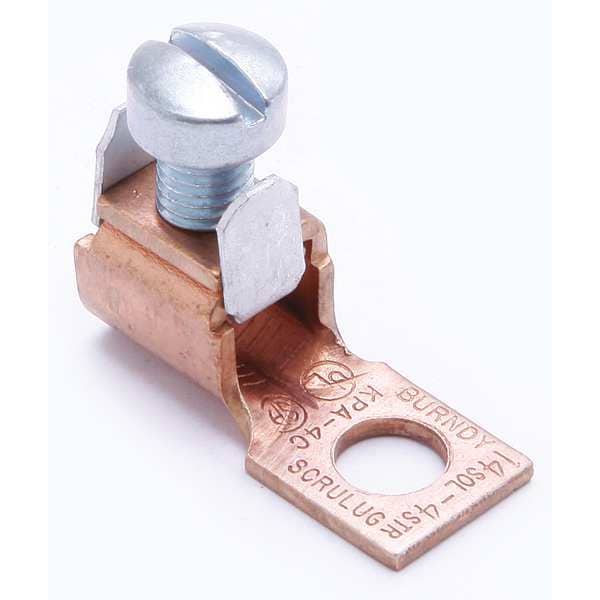

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper
Mfr # KPA4CUNPL
Zoro # G4685414
product price: $5.39
/eaKey Features
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
Number of Conductors
1
Number of Terminations
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
KPA4CUNPL
Zoro #
G4685414
UPC #
781810554142
Country of Origin
United States
Dimensions
For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
For Stud Size
1/4 in
Hole Diameter
0.27 in
Tongue Width
0.5 in
Width
0.94 in
Stud Size
1/4 in
Length
1.21 in
Min. Conductor Size
14 AWG Stranded/Solid
Max. Conductor Size
4 AWG Stranded/Solid
Length (Straight Wireway)
1.21 in
For Stranded Copper Wire Size - Maximum
4 AWG
For Stranded Copper Wire Size - Minimum
14 AWG
Tongue Length
0.59 in
Overall Length
1.22 in
Overall Width
0.94 in
Tongue Thickness
0.06 in
Overall Depth
1/2 in
Conductor Size
14-4 AWG
Dimension - Height inch
0.94 in
Dimension - Bolt Size fraction
2023-01-04
Dimension - Stud Size inch
44930
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - Width mm
11 mm
Dimension - L Length Overall mm
31
Dimension - Pad Width inch
0.50 in
Conductor - Copper Str Navy Size Range
23 (7) Navy-40 (19) Navy
Dimension - Width inch
0.42 in
Dimension - D inch
0.59 in
Conductor - Copper Str Size Range
14 AWG-4 AWG
Dimension - N inch
0.3 in
Conductor - Copper Solid Size Range
14 AWG-4 AWG
Dimension - Height fraction
47/50 in
Conductor - Copper Str Navy Size
23 (7) Navy;30 (19) Navy;40 (19) Navy
Dimension - Hole Size mm
7 mm
Dimension - Hole Size inch
0.27 in
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - Length Overall inch
1.22
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 1/4 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.59 in, Tongue Width 0.5 in, Tongue Thickness 0.06 in, Connector Type Terminal
