Burndy Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper KLU400 - main
Shop BURNDY

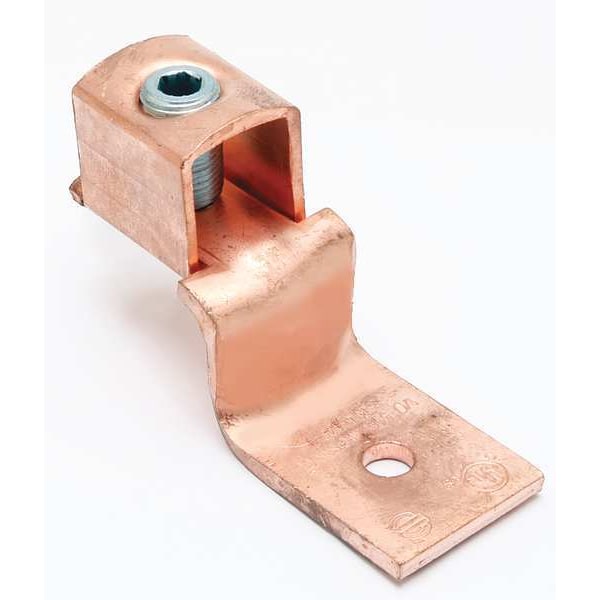

Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper

  • Mfr # KLU400

  • Zoro # G4662524

product price:  $62.79
/ea

Key Features

Connector Type
Offset Tang
For Conductor Material
Copper
For Minimum Wire Size
1/0 AWG
For Maximum Wire Size
500 kcmil
Number of Conductors
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
KLU400
Zoro #
G4662524
UPC #
781810554265
Country of Origin
India

Dimensions

For Minimum Wire Size
1/0 AWG
For Maximum Wire Size
500 kcmil
For Stud Size
3/8 in
Hole Diameter
0.39 in
Tongue Width
1.5 in
Max. Conductor Size
500 kcmil Stranded
Stud Size
3/8 in
Length
4.1 in
Width
1.49 in
Min. Conductor Size
1/0 AWG Stranded
Length (Straight Wireway)
4.1 in
For Stranded Copper Wire Size - Maximum
500 kcmil
Tongue Offset Height
2.67 in
Tongue Thickness
0.18 in
Overall Length
4.09 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
Strip Length
1 5/32 in
Overall Depth
1 1/2 in
Overall Width
1.9 in
Conductor Size
1/0 AWG-500 KCMIL
Dimension - B Length fraction
1-13/32 in
Dimension - Hole Size inch
0.39 in
Dimension - L Length Overall mm
104 mm
Dimension - Screw Size inch
45054
Dimension - Strip Length inch
11693
Dimension - Hole Size mm
10 mm
Dimension - B Length inch
1.42 in
Conductor - Copper Str Size Range
1/0 -500 kcmil
Dimension - Pad Width inch
1.50 in
Conductor - Copper Str Size
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
Dimension - Bolt Size fraction
2023-03-08
Dimension - N inch
0.91 in
Dimension - Length Overall inch
4.09 in
Dimension - Stud Size inch
44993

Details

Item
Mechanical Lug
Connector Type
Offset Tang
For Conductor Material
Copper
Number of Conductors
1
Number of Terminations
1
Number of Holes
1
Body Material
Copper
Contact Finish
Unplated
Maximum Voltage
600 V
Maximum Operating Temperature
194 Degrees F
Standards
cULus Listed, UL Listed
No. of Conductors
1
Material
Copper
Head Style
Hex
Torque
275 in-lb
Compatible with Product Type
Copper Cable
Special Features
Easy Installation, Long Lasting Reliable Contact
Color
Bare
Type
Bolted Lugs & Terminals
Certification - UL Listed Direct Burial
No
Conductor Type
CU C Str-Size
Physical Attribute - Number of Screws
1
Physical Attribute - Number of Holes
1
Plating Type
Unplated
Installation Torque Recommended in-lb
275
Certification - CSA Approved
No
Certification - cULus
Yes
Industry Standard(s)
UL467
Plated
N
Hardware Type
5/8 UNF Socket/HexScrew
UL Listed
No
Physical Attribute - Screw Type
Allen
Application
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar And Offset Tongue, Non-Plated
Trade Name
SCRULUGâ„¢

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.39 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.5 in, Tongue Thickness 0.18 in
