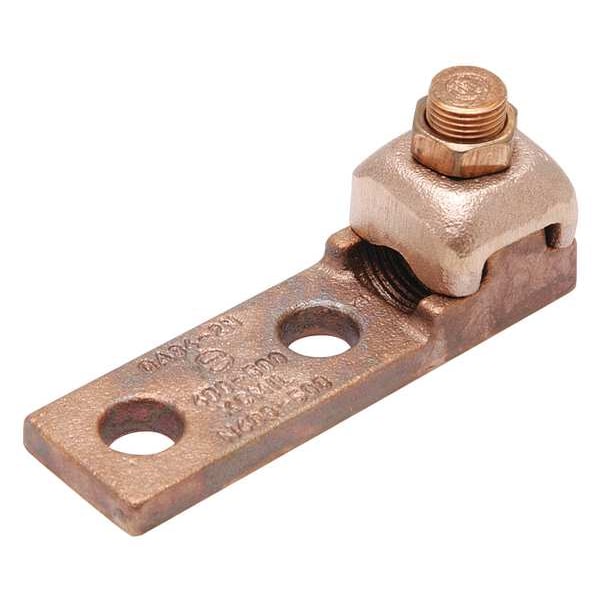

Mechanical Lug, 500 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Copper
Mfr # QA342N
Zoro # G4656556
product price:Â $212.99
/ea
Free Shipping & Returns
Key Features
For Conductor Material
Copper
For Minimum Wire Size
400 kcmil
For Maximum Wire Size
500 kcmil
Number of Conductors
1
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- QA342N
- Zoro #
- G4656556
- UPC #
- 781810553633
- Country of Origin
- Mexico
Dimensions
- For Minimum Wire Size
- 400 kcmil
- For Maximum Wire Size
- 500 kcmil
- For Stud Size
- 1/2 in
- Hole Diameter
- 0.56 in
- Tongue Width
- 1.38 in
- Length
- 4.69 in
- Min. Conductor Size
- 400 kcmil Stranded
- Width
- 1.94 in
- Stud Size
- 1/2 in
- Max. Conductor Size
- 500 kcmil Stranded
- Length (Straight Wireway)
- 4.69 in
- Overall Length
- 4.69 in
- Tongue Thickness
- 0.31 in
- For Stranded Copper Wire Size - Maximum
- 500 kcmil
- For Stranded Copper Wire Size - Minimum
- 400 kcmil
- Overall Depth
- 1 3/8 in
- Overall Width
- 1.94 in
- Tongue Length
- 3.09 in
- Conductor Size
- 400-500 kcmil
- Dimension - Hole Size mm
- 14 mm
- Dimension - Stud Size inch
- 44928
- Dimension - Length Overall inch
- 4.69 in
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 1.38 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size fraction
- 45185
- Conductor - Copper Str Navy Size Range
- 400 (127) Navy-500 (127) Navy
- Dimension - Height fraction
- 2
- Conductor - Copper Str Size Range
- 400 kcmil-500 kcmil
- Dimension - Bolt Size fraction
- 1 to 2
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - L Length Overall mm
- 119 mm
- Conductor - Copper Str Size
- 400 kcmil;450 kcmil;500 kcmil
- Dimension - D inch
- 3.09 in
- Conductor - Copper Str Navy Size
- 400 (127) Navy;500 (127) Navy
- Dimension - Height inch
- 1.94 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 1/2 in, Head Style Hex, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 3.09 in, Tongue Width 1.38 in, Tongue Thickness 0.31 in, Connector Type Terminal
