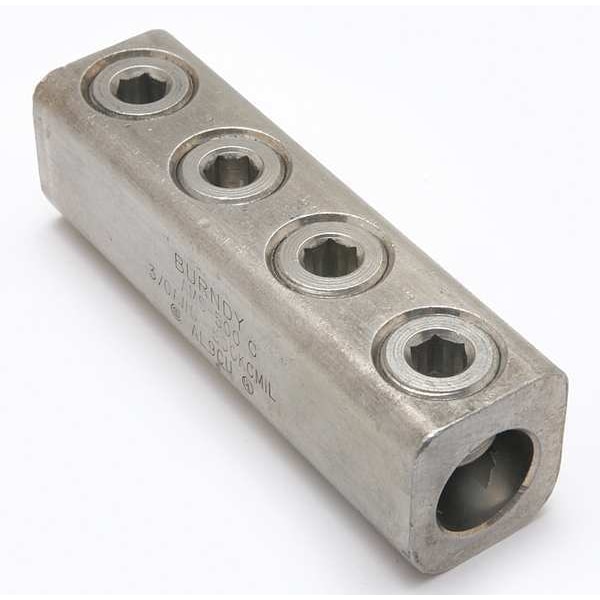

Mechanical Lug, 500 kcmil Max, 2 Conductor, 13/16 in Stud, Aluminum
Mfr # AMS500
Zoro # G4674047
product price:Â
$
50.99
/ea
Key Features
Connector Type
Splice/Reducer
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
3/0 AWG
For Maximum Wire Size
500 kcmil
Number of Conductors
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AMS500
- Zoro #
- G4674047
- UPC #
- 781810554593
- Country of Origin
- United States
Dimensions
- For Minimum Wire Size
- 3/0 AWG
- For Maximum Wire Size
- 500 kcmil
- For Stud Size
- 13/16 in
- Min. Conductor Size
- 3/0 Stranded/Solid
- Length
- 4.78 in
- Width
- 1.38 in
- Max. Conductor Size
- 4/0 AWG Solid, 500 kcmil Stranded
- Stud Size
- 13/16 in
- Length (Straight Wireway)
- 4.78 in
- For Stranded Copper Wire Size - Minimum
- 3/0 AWG
- Overall Width
- 1.38 in
- For Stranded Copper Wire Size - Maximum
- 500 kcmil
- Overall Length
- 4.78 in
- Overall Depth
- 1 1/4 in
- Conductor Size
- 3/0 AWG-500 KCMIL
- Dimension - Length Overall inch
- 4.78 in
- Depth
- 0.56 in
- Conductor - AL Str Size
- 3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Dimension - Width inch
- 1.25 in
- Dimension - Height fraction
- 39450
- Conductor - ACSR Cmpt Size
- 600 kcmil
- Conductor - AL Str Size Range
- 3/0 AWG-500 kcmil
- Dimension - H1 Height inch
- 1.38 in
- Dimension - Width mm
- 32 mm
- Conductor - ACSR Str Size
- 500 kcmil
- Dimension - Width fraction
- 1-1/4 in
- Conductor - Copper Str Size
- 3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Solid Size Range
- 3/0 AWG-4/0 AWG
- Conductor - Copper Str Size Range
- 3/0 AWG-500 kcmil
- Conductor - Copper Solid Size
- 3/0 AWG;4/0 AWG
- Hex Size
- 44993
- Dimension - L Length Overall mm
- 121 mm
- Die Size
- Burndy 317
- Conductor - Copper Str Compact Size
- 600 kcmil
- Wire Rope Length
- 4.78 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 13/16 in, Head Style Hex Socket, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 4, Tongue Width Not Applicable
