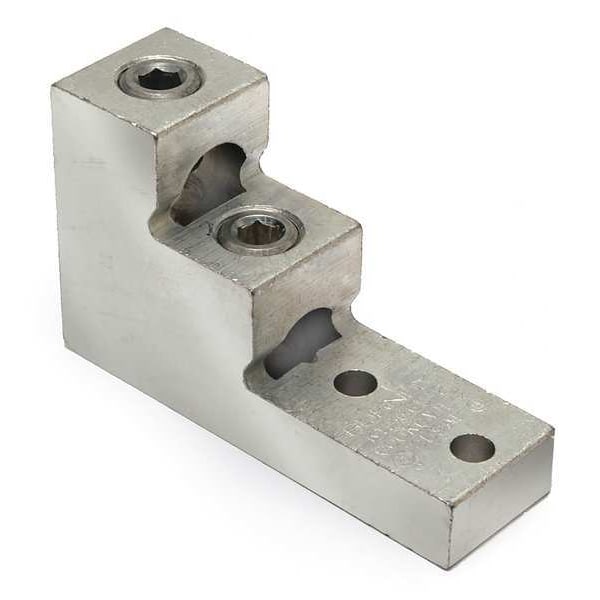

Mechanical Lug, 600 kcmil Max, 2 Conductor, 2 Hole, 3/8 in Stud, Aluminum
Mfr # K11A36U2
Zoro # G4657231
CAD Available
product price: $102.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
2 AWG
For Maximum Wire Size
600 kcmil
Number of Conductors
2
Number of Terminations
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
K11A36U2
Zoro #
G4657231
UPC #
781810559338
Country of Origin
United States
Dimensions
For Minimum Wire Size
2 AWG
For Maximum Wire Size
600 kcmil
For Stud Size
3/8 in
Hole Diameter
0.41 in
Tongue Width
1.50 in
Stud Size
3/8 in
Min. Conductor Size
1 AWG Solid, 2 AWG Stranded
Length
4.91 in
Width
3.02 in
Max. Conductor Size
4/0 AWG Solid, 600 kcmil Stranded
Length (Straight Wireway)
4.91 in
For Stranded Copper Wire Size - Minimum
2 AWG
Overall Length
4.91 in
Overall Depth
1 9/16 in
For Stranded Copper Wire Size - Maximum
600 kcmil
Tongue Thickness
0.75 in
Tongue Length
2.31 in
Overall Width
3.02 in
Dimension - L Length Overall mm
125 mm
Dimension - Height inch
3.02 in
Dimension - Width mm
38 mm
Conductor - Copper Solid Size
1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Size
2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
Dimension - Width fraction
1-1/2 in
Dimension - Bolt Hole Size inch
0.38 in
Dimension - D inch
2.31 in
Conductor - AL Str Size
2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
Dimension - Stud Size inch
3/8 in
Conductor - Copper Solid Size Range
1 AWG-4/0 AWG
Dimension - N inch
0.38 in
Dimension - Screw Size inch
15/16
Dimension - Stud Size fraction
44993
Conductor - AL Str Size Range
2 AWG (Str)-600 kcmil
Dimension - Height fraction
3 in
Conductor - Copper Str Size Range
2 AWG (Str)-600 kcmil
Dimension - Length Overall inch
4.91 in
Dimension - Width inch
1.52 in
Dimension - Hole Size inch
0.41 in
Dimension - Pad Width inch
1.52 in
Dimension - Hole Size mm
10 mm
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 3/8 in, Head Style Hex, Number of Holes 2, Hole Diameter 0.41 in, Hole Spacing 1.38 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 2.31 in, Tongue Width 1.5 in, Tongue Thickness 0.75 in, Connector Type Terminal
