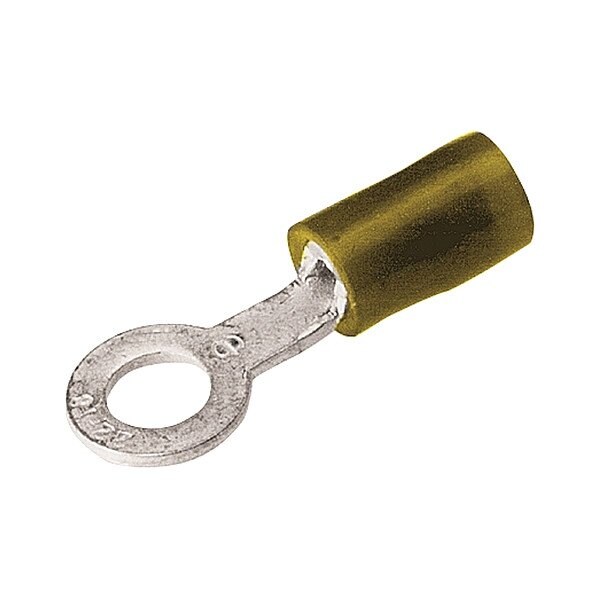

Nylon - #10 awg - #10 stud hole
Mfr # TN1010
Zoro # G622378898
product price:Â
$
2.19
/ea
Sold in multiples of 50 for $109.50
Key Features
Terminal Shape
Ring
Standards
CSA Listed, UL486
Contact Material
Copper
Insulation Color
Yellow
Insulation Type
Nylon
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TN1010
- Zoro #
- G622378898
- UPC #
- 781810734162
- Country of Origin
- United States
Dimensions
- Stud Size
- #8 to #10
- Minimum Wire Size
- 12 AWG
- Maximum Wire Size
- 10 AWG
- Barrel Outside Diameter
- 0.21 in
- Hole Diameter
- 0.23 in
- Overall Length
- 1.12 in
- Tongue Width
- 0.37 in
- Tongue Thickness
- 0.04 in
- Strip Length
- 3/8 in
- Barrel Length
- 0.86 in
- Wire Rope Length
- 1.12 in
- Length
- 1.12 in
Description
Nylon Ring Terminal For 12 - 10 AWG, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Tongue Width 0.37 in, Contact Finish Tin, Contact Material Copper, Standards CSA, EU RoHS, UL486, Barrel Length 0.86 in, Barrel Outside Diameter 0.21 in, Barrel Style Brazed Funnel Entry, Hole Diameter 0.23 in, Hole Spacing 0.19 in
