Nylon - #14 awg - #8 stud hole
Mfr # TN148
Zoro # G122378909
product price:Â
$
1.85
/ea
Sold in multiples of 100 for $185.00
Key Features
Minimum Wire Size
16 AWG
Maximum Wire Size
14 AWG
Insulation Type
Nylon
Maximum Operating Temperature
221 Degrees F
Terminal Shape
Ring
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TN148
- Zoro #
- G122378909
- UPC #
- 781810734483
- Country of Origin
- United States
Dimensions
- Minimum Wire Size
- 16 AWG
- Maximum Wire Size
- 14 AWG
- Stud Size
- #6 to #8
- Overall Length
- 0.89 in
- Tongue Width
- 0.31 in
- Barrel Length
- 0.58 in
- Strip Length
- 1/4 in
- Barrel Outside Diameter
- 0.15 in
- Hole Diameter
- 0.18 in
- Tongue Thickness
- 0.03 in
- Wire Rope Length
- 0.89 in
- Length
- 0.89 in
Description

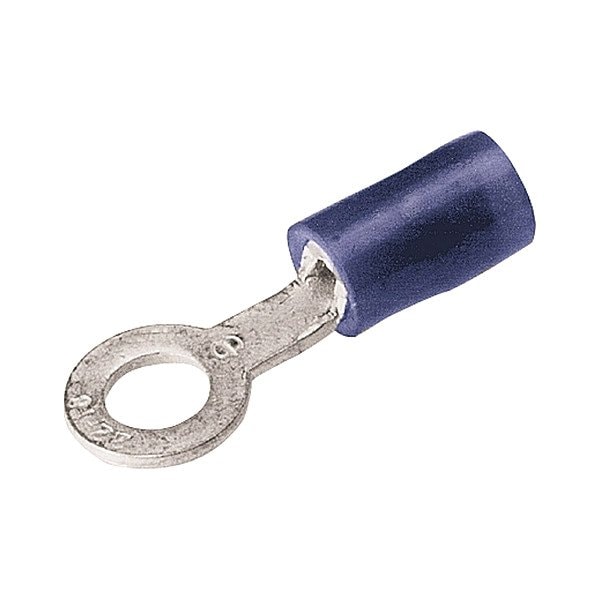

Nylon Ring Terminal For 16 - 14 AWG, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA, EU RoHS, UL486, Barrel Length 0.58 in, Barrel Outside Diameter 0.15 in, Barrel Style Brazed Funnel Entry, Hole Diameter 0.18 in, Hole Spacing 0.16 in, Overall Length 0.89 in
