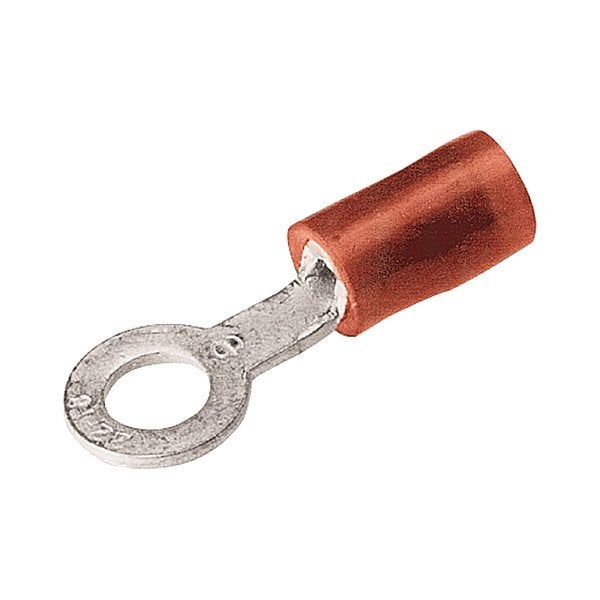

Nylon - #18 awg - 1/4 inch stud hole
Mfr # TN1814
Zoro # G522378905
product price:Â $2.89
/ea
Sold in multiples of 100 for $289.00
Key Features
Minimum Wire Size
22 AWG
Terminal Shape
Ring
Maximum Wire Size
18 AWG
Insulation Type
Nylon
Insulation Coverage
Partial Coverage
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TN1814
- Zoro #
- G522378905
- UPC #
- 781810734841
- Country of Origin
- United States
Dimensions
- Minimum Wire Size
- 22 AWG
- Stud Size
- #12 to 1/4 in
- Maximum Wire Size
- 18 AWG
- Barrel Outside Diameter
- 0.12 in
- Hole Diameter
- 0.28 in
- Strip Length
- 1/4 in
- Barrel Length
- 0.68 in
- Overall Length
- 1.09 in
- Tongue Width
- 0.46 in
- Tongue Thickness
- 0.03 in
- Wire Rope Length
- 1.09 in
Description
Nylon Ring Terminal For 22 - 18 AWG, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Tongue Width 0.46 in, Contact Finish Tin, Contact Material Copper, Standards CSA, EU RoHS, UL486, Barrel Length 0.68 in, Barrel Outside Diameter 0.12 in, Barrel Style Brazed Funnel Entry, Hole Diameter 0.28 in, Hole Spacing 0.23 in, Overall Length 1.09 in
