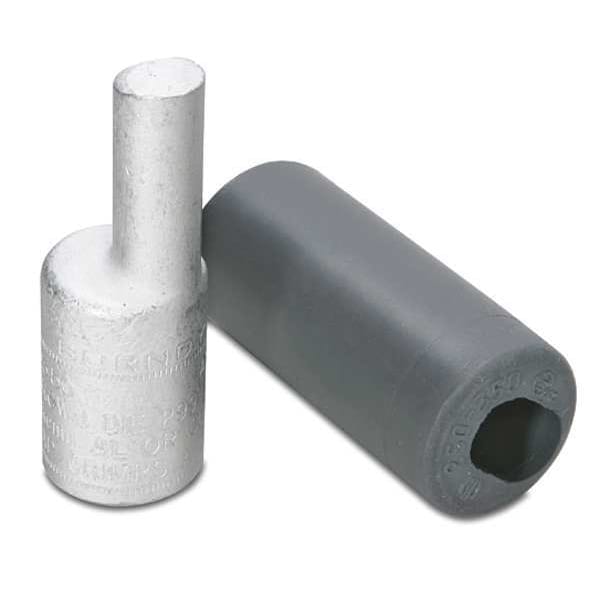

Offset Adapter, 2/0 AWG Max, Standard Barrel, Aluminum, White

  • Mfr # AYPO2/0
  • Zoro # G4671615
CAD Available
product price:
$
27.95
/ea

Key Features

CAD Drawing
For Wire Size
2/0 AWG
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Die Code
298
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AYPO2/0
Zoro #
G4671615
UPC #
781810556405
Country of Origin
United States

Dimensions

For Wire Size
2/0 AWG
Barrel Size
Standard
Min. Wire Size
1 AWG
Diameter
21/64 in
Length
2.7 in
Max. Wire Size
2/0 AWG
Width
0.86 in
Length (Straight Wireway)
2.7 in
For Stranded Copper Wire Size - Minimum
2/0 AWG
For Stranded Copper Wire Size - Maximum
2/0 AWG
Pin Equivalent Wire Size
1 AWG
Barrel Diameter
0.86 in
Pin Length
1.09 in
Strip Length
1 1/16 in
Overall Length
2.7 in
For Stranded Aluminum Wire Size - Maximum
2/0 AWG
Pin Diameter
0.328 in
Barrel Length
1.11 in
Conductor - Copper Flex I Size Range
1/0 AWG
Conductor - AL Str Size Range
2/0 AWG
Equivalent Pin Size
1 AWG
Dimension - L Length Overall mm
69 mm
Conductor - Copper Flex I Size
2/0 AWG
Conductor - Copper DLO Size Range
1/0 AWG
Conductor Size
2/0 AWG
Conductor - Copper Str Size Range
2/0 AWG
Dimension - Length Overall inch
2.70 in
For Minimum Wire Size - Solid
1 AWG
For Maximum Wire Size - Stranded
2/0 AWG
Minimum Wire Size
1 AWG
Maximum Run Wire Size
2/0 AWG
Maximum Wire Size
2/0 AWG
For Minimum Wire Size - Stranded
2/0 AWG
For Maximum Wire Size - Solid
2/0 AWG
Minimum Run Wire Size
1 AWG
Wire Rope Length
2.7 in

Details

Item
Offset Adapter
For Conductor Material
Aluminum, Copper
Material
Aluminum
Die Code
298
Color Code
White
Standards
CSA Approved; UL468A-468B; UL Listed
For Use With
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Application
For Aluminum and Copper Conductors, Mechanical Connectors in Molded Case Circuit Breakers, Panel Board Equipment and Meter Sockets
Wire Range
2/0 AWG Aluminum; 2/0 AWG Copper
Max. Temp.
194°F
Max. Voltage
35 kv
Color
White
Connection Material
Aluminum
Insulation Material
Rubber
Compatible Installation Tool Model Number
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Connection Orientation
Offset
Contact Material
Aluminum
Number of Crimps
2
Maximum Voltage
35 kV
Contact Finish
Tin
Insulated
Yes
Finish
Tin Plated
Type
Pin Adapter
UL Listed
Yes
Conductor Type
CODE/FLEX
Finish Type
Tin-Plated
Voltage Rating
35 kV
Industry Standard(s)
UL 486A-486B
Trade Name
HYPLUGâ„¢
Pin Type
Solid
Certification - CSA Approved
Yes
Maximum Conductors
2
RoHS Compliant
Yes
Maximum Operating Temperature
194Â Degrees F
CAD Available
Yes

Description

Compression Pin Terminal, Connection Orientation Offset, Die Code 298, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 2, Pin Diameter 0.328 in, Pin Equivalent Wire Size 1 AWG, Pin Length 1.09 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 0.86 in, Barrel Length 1.11 in, Color Code White
