Burndy One-Hole Compression Lug, 1 AWG Max, Standard Barrel, Copper, None YAV1CL1 - main

One-Hole Compression Lug, 1 AWG Max, Standard Barrel, Copper, None

  • Mfr # YAV1CL1

  • Zoro # G705778287

product price: $3.79
/ea
Sold in multiples of 200 for $758.00

Key Features

Material
Copper
Color Code
None
Die Code
42
Standards
UL486, Military Specified (Mil-Spec)
Dimension - Hole Size inch
0.27 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAV1CL1
Zoro #
G705778287
UPC #
-
Country of Origin
United States

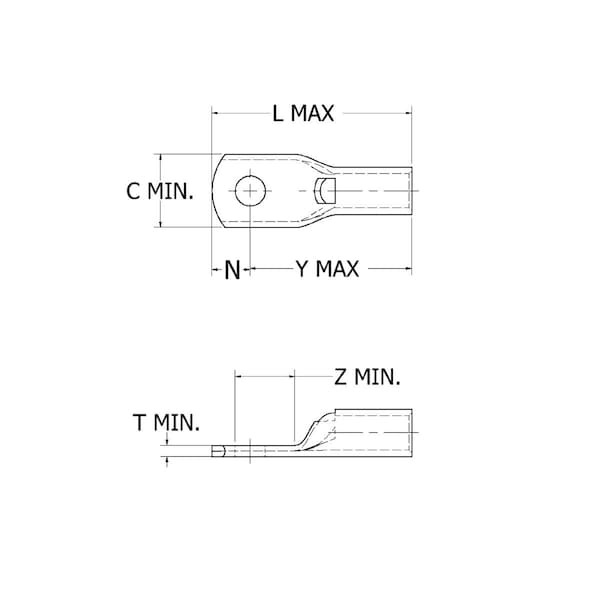

Dimensions

Dimension - Hole Size inch
0.27 in
Dimension - Strip Length inch
45054
Dimension - Hole Size mm
7 mm
Dimension - Z inch
0.38 in
Conductor - Copper Str Aircraft Size Range
AN 1
Dimension - Outside Diameter inch
0.51 in
Conductor - Copper Str Aircraft Size
AN 1
Conductor - Copper Str Size Range
1
Dimension - Length Overall inch
1.84 in
Dimension - N inch
0.38 in
Dimension - Pad Width inch
0.76 in
Dimension - B Length inch
0.60 in
Conductor - Copper Str Size
1
Dimension - D inch
0.76 in
Dimension - B Length fraction
5/8 in
Dimension - Bolt Hole Size inch
0.27 in
Dimension - Bolt Size fraction
2023-01-04
Conductor Size
1 AWG
Barrel Size
Standard
For Wire Size
1 AWG

Details

Material
Copper
Color Code
None
Die Code
42
Standards
UL486, Military Specified (Mil-Spec)
Item
One-Hole Compression Lug
Type
Ring Tongue
Physical Attribute - Number of Holes
1
Plating Type
Tin
Plated
Y
Die Index
42
Physical Attribute - Tongue Type
Ring
Physical Attribute - Tongue Angle
Straight
Feature - Barrel Type
Standard
Application
For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
Certification - CSA Approved
Yes
Trade Name
HYLUGâ„¢
Material Composition
DLP CopperTin Plating
Industry Standard(s)
UL467Military Specified (Mil-Spec)
Conductor Type
CU C Solid-SizeCU C Str-Size
UL Listed
Yes
Feature - Barrel Style
ChamferedSkived
For Conductor Material
Copper
Tongue Angle
Straight
Number of Holes
1

Description

Tin Plated

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
