  11. One-Hole Compression Lug, 1/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None

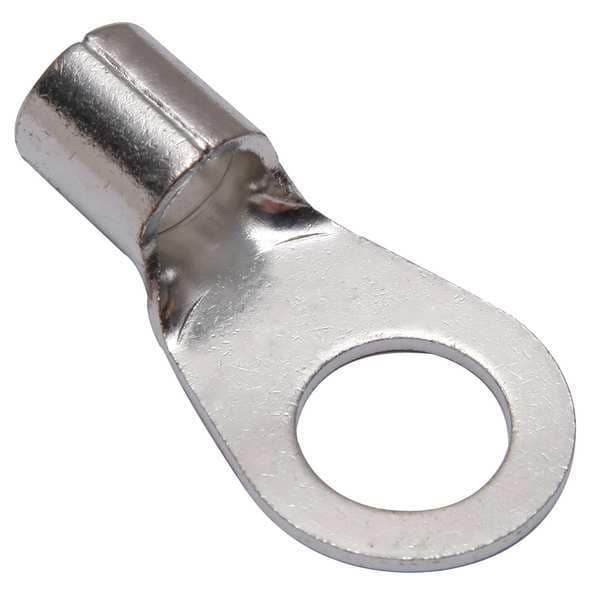

Burndy One-Hole Compression Lug, 1/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None YAD25M16E58 - main

One-Hole Compression Lug, 1/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD25M16E58

  • Zoro # G6158905

product price: $8.69
/ea

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Copper
For Stud Size
5/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD25M16E58
Zoro #
G6158905
UPC #
781810668160
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
1/0 AWG
For Stud Size
5/8 in
Barrel Size
Long
Tongue Width
1.10 in
Barrel Length
0.63 in
Overall Length
2.12 in
Length
2.13"
Tongue Width - Wire Connector
1.1 in
Cable Size
1/0 AWG
Width
1.1"
Tongue Length
1.49 in
Minimum Wire Size
1/0 AWG
Hole Diameter
0.67 in
Strip Length
3/4 in
Barrel Outside Diameter
0.57 in
Maximum Wire Size
1/0 AWG
Tongue Thickness
0.07 in
Dimension - Stud Size inch
45054
Dimension - B Length inch
0.63 in
Dimension - Bolt Size fraction
2023-05-08
Dimension - Outside Diameter inch
0.57 in
Dimension - Hole Size inch
0.67 in
Dimension - Pad Width inch
1.10 in
Dimension - Length Overall inch
2.12 in
Conductor Size
1/0 AWG
Dimension - Strip Length inch
44989
Conductor - Copper Str Size
1/0 AWG
Dimension - L Length Overall mm
54 mm

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1019
Color Code
None
Standards
UL 467
Insulation Type
Non-Insulated
Wire Range
1/0 AWG
Seam
Brazed
Max. Voltage
600 V
Peep Hole
No
Connector Type
YAD
Connection Material
Tin Plater Copper
Hole Center to End
1.570"
Plate Material
Tin
Tongue Style
Ring
Max. Temp.
302 Degrees F
Insulation Color
Bare
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
RoHS Compliant
Yes
Terminal Shape
Ring Tongue
Compatible with Product Type
Code, Flex Cable
Contact Finish
Tin
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Contact Material
Copper
Insulation Coverage
None
Insulation Material
None
Maximum Operating Temperature
302 Degrees F
Seam Style
Brazed
Minimum Operating Temperature
302 Degrees F
Maximum Voltage
600 V
Termination Style
Crimp
Hole Spacing
0.94 in
Barrel Style
Brazed
Physical Attribute - Tongue Type
Ring
Plated
Y
Type
Ring Tongue
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Plating Type
Tin
Industry Standard(s)
UL467
Trade Name
HYLUGâ„¢
Item Type
3B
Conductor Type
CU C Str-SizeCU C Flex-Size
Voltage - Maximum
600 V
Feature - Barrel Type
Long

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 1/0 AWG, Maximum Wire Size 1/0 AWG, Termination Style Crimp, Tongue Width 1.1 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.63 in, Barrel Outside Diameter 0.57 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
