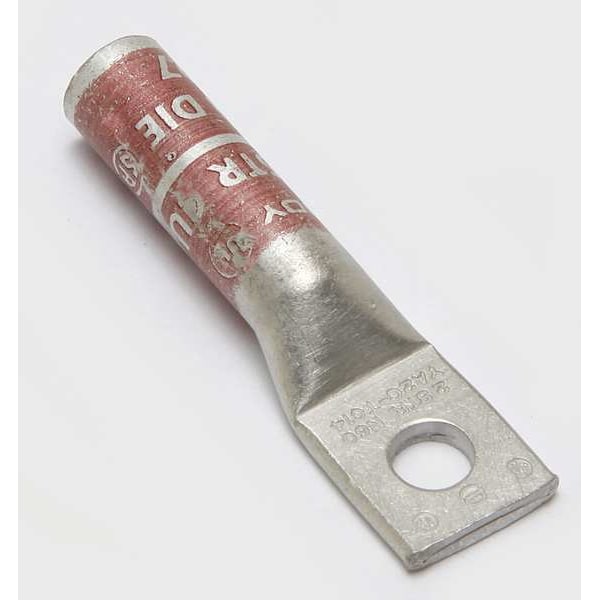

One-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Long Barrel, Copper, Brown

  • Mfr # YA2CTC14
  • Zoro # G4654641

product price:
$
9.55
/ea

Key Features

For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
YA2CTC14
Zoro #
G4654641
UPC #
781810555804
Country of Origin
United States
Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
10
Color Code
Brown
Standards
CSA Certified, UL 486A-486B, UL Listed
Connector Type
Long Barrel
Plate Material
Electro Tin
Peep Hole
No
Hole Center to End
0.31 in
Tongue Style
Standard
Application
For Code Conductor
Special Features
Non-Insulated Construction
Barrel Style
Chamfered
Termination Style
Crimp
RoHS Compliant
Yes
Maximum Voltage
35 kV
Maximum Operating Temperature
194 Degrees F
For Wire Type
Stranded
Contact Finish
Tin
Certification - CSA Approved
Yes
Voltage Rating
35 kV
Trade Name
HYLUGâ„¢
Feature - Barrel Style
Chamfered
Rating - KVA
35 kV
UL Listed
Yes
Conductor Type
CODE
Industry Standard(s)
UL467
Finish Type
Tin-Plated
Plating Type
Tin - Electro Plated
Feature - Barrel Type
Long
Physical Attribute - Tongue Angle
Straight
Plated
Y
Conductor - Material
Copper
Voltage - Maximum
35000
Die Index
10
Rating - Minimum Voltage
600
Type
Long Barrel, Tin Plated
Physical Attribute - Number of Holes
1
Number of Holes
1
Shell Material
Copper
Traction Material
Copper

Dimensions

For Wire Size
2 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.6 in
Cable Size
2 AWG
Width
0.6"
Length
2.23"
Barrel Length
Long
Overall Length
2.23 in
Overall Width
0.61 in
Length (Straight Wireway)
2.23 in
Strip Length
1 5/16 in
For Stranded Copper Wire Size - Minimum
2 AWG
Hole Size
0.27 in
Tongue Length
0.64 in
Tongue Thickness
0.11 in
For Stranded Copper Wire Size - Maximum
2 AWG
Barrel Outside Diameter
0.42 in
Conductor - Copper Str Navy Size
60 (37) Navy
Dimension - Z inch
0.33 in
Conductor Size
2 AWG
Dimension - Bolt Size fraction
2023-01-04
Dimension - Strip Length inch
42374
Dimension - Bolt Size inch
0.25
Dimension - B Length inch
1.25 in
Dimension - Bolt Hole Size inch
0.27 in
Dimension - Stud Size fraction
2023-01-04
Dimension - Length Overall inch
2.23 in
Dimension - Hole Size inch
0.27 in
Dimension - Stud Size inch
44930
Dimension - Hole Size mm
7 mm
Dimension - L Length Overall mm
57 mm
Dimension - Hole Size fraction
2023-01-04
Conductor - Copper Str Size
2 AWG
Dimension - N inch
0.31 in
Dimension - Outside Diameter inch
0.42 in
Dimension - B Length fraction
1-1/4 in
Conductor - Copper Str Size Range
2 AWG
Dimension - Pad Width inch
0.60 in
Wire Rope Length
2.23 in

Description

Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
