  6. One-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Brown

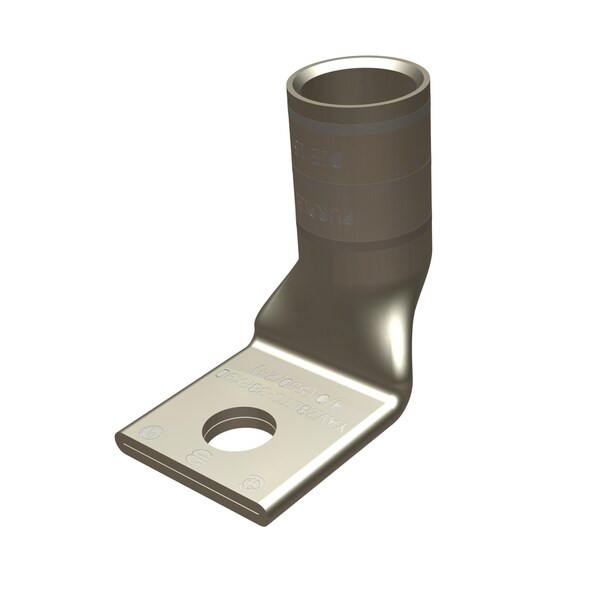

Burndy One-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Brown YAV2CLTC14FX90 - main

One-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Brown

  • Mfr # YAV2CLTC14FX90

  • Zoro # G0667774

product price:  $8.15
/ea

Key Features

For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
YAV2CLTC14FX90
Zoro #
G0667774
UPC #
781810022405
Country of Origin
Unknown

Dimensions

For Wire Size
2 AWG
For Stud Size
1/4 in
Barrel Size
Standard
Tongue Width
0.68 in
Conductor - Copper Flex H Size
2 AWG
Conductor - Copper Solid Size
2 AWG
Conductor - Copper Flex I Size
2 AWG
Conductor - Copper DLO Size
3 (125/#24) DLO;2 (150/#24) DLO
Dimension - Height inch
1.15 in
Conductor - Copper Flex K Size
2 AWG
Conductor - Copper Str Size
2 AWG
Dimension - Strip Length inch
45246
Dimension - Hole Size inch
0.27 in
Dimension - Z inch
0.33 in
Dimension - N inch
0.31 in
Dimension - Bolt Hole Size inch
0.27 in
Dimension - Pad Width inch
0.68 in
Dimension - B Length fraction
5/8 in
Conductor - CopperWeld Str Size
2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG
Dimension - L Length Overall mm
25 mm
Dimension - B Length inch
0.63 in
Dimension - Outside Diameter inch
0.46 in
Conductor - Copper Flex M Size
2 AWG
Conductor - Copper Str Navy Size
60 (37) Navy
Dimension - Length Overall inch
0.97 in
Conductor - Copper Flex G Size
2 AWG
Dimension - Hole Size mm
7 mm

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
90 Degrees Angled
Inspection Hole
Yes
Die Code
10
Color Code
Brown
Standards
UL 467
Application
For Flex Conductors
Voltage - Maximum
35000
Rating - Minimum Voltage
600
Physical Attribute - Tongue Angle
90 Degree
Type
Standard Barrel, Tin Plated
Die Index
10
Plating Type
Tin - Electro Plated
Physical Attribute - Tongue Type
Standard
Conductor - Material
Copper
Certification - CSA Approved
Yes
Feature - Barrel Style
Chamfered
Physical Attribute - Number of Holes
1
Plated
Y
Feature - Barrel Type
Standard
Rating - KVA
35 kV
Bolt Hole
1/4 in
Number of Holes
1
