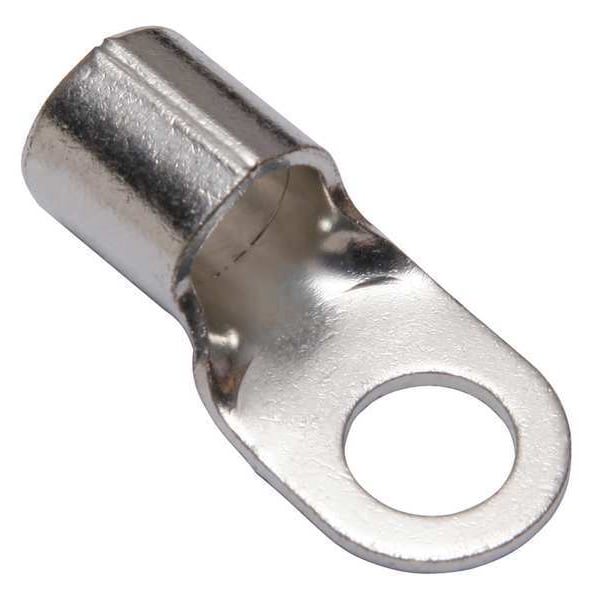

Burndy One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, None YAD26M12E12 - main

One-Hole Compression Lug, 2/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, None

  • Mfr # YAD26M12E12

  • Zoro # G6213654

product price: $8.99
/ea

Key Features

For Wire Size
2/0 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD26M12E12
Zoro #
G6213654
UPC #
781810668214
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
2/0 AWG
For Stud Size
1/2 in
Barrel Size
Long
Tongue Width
0.91 in
Tongue Width - Wire Connector
0.87 in
Width
0.87"
Length
1.93"
Cable Size
2/0 AWG
Barrel Length
0.71 in
Overall Length
1.93 in
Barrel Outside Diameter
0.67 in
Maximum Wire Size
2/0 AWG
Tongue Thickness
0.08 in
Hole Diameter
0.51 in
Minimum Wire Size
2/0 AWG
Strip Length
7/8 in
Tongue Length
1.22 in
Conductor Size
2/0 AWG
Dimension - Strip Length inch
13/16
Conductor - Copper Str Size
2/0 AWG
Dimension - B Length inch
0.71 in
Dimension - Bolt Size fraction
1 to 2
Dimension - Outside Diameter inch
0.67 in
Dimension - Stud Size inch
1 to 2
Dimension - Hole Size inch
0.51 in
Dimension - L Length Overall mm
49 mm
Dimension - Length Overall inch
1.93 in
Dimension - Pad Width inch
0.91 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1022
Color Code
None
Standards
UL 467
Insulation Color
Bare
Seam
Brazed
Wire Range
2/0 AWG
Connector Type
YAD
Connection Material
Tin Plater Copper
Tongue Style
Ring
Insulation Type
Non-Insulated
Peep Hole
No
Plate Material
Tin
Max. Temp.
302 Degrees F
Max. Voltage
600 V
Hole Center to End
1.500"
Termination Style
Crimp
Minimum Operating Temperature
302 Degrees F
Hole Spacing
0.79 in
Barrel Style
Brazed
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Seam Style
Brazed
Maximum Voltage
600 V
Insulation Material
None
Contact Finish
Tin
Maximum Operating Temperature
302 Degrees F
Compatible with Product Type
Code, Flex Cable
Insulation Coverage
None
Terminal Shape
Ring Tongue
RoHS Compliant
Yes
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Contact Material
Copper
Feature - Barrel Type
Long
Type
Ring Tongue
Plating Type
Tin
Plated
Y
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Physical Attribute - Tongue Type
Ring
Industry Standard(s)
UL467
Voltage - Maximum
600 V
Trade Name
HYLUGâ„¢
Item Type
3B
Conductor Type
CU C Str-SizeCU C Flex-Size
Number of Holes
1

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 0.91 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
