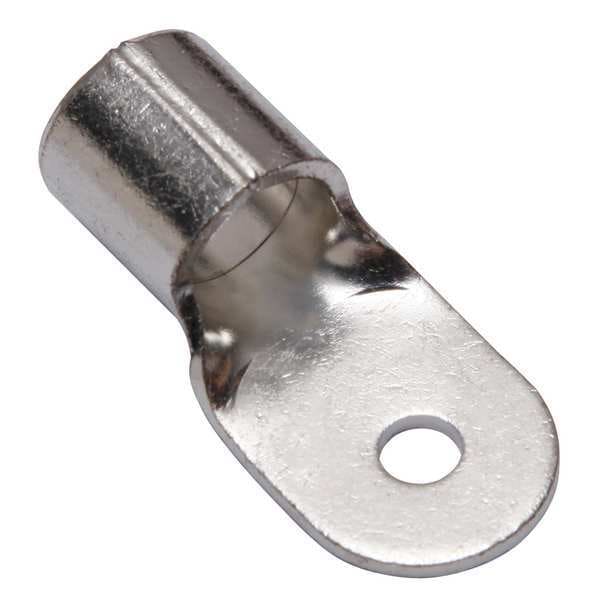

Burndy One-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, None YAD26M6E14 - main

One-Hole Compression Lug, 2/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, None

  • Mfr # YAD26M6E14

  • Zoro # G6121981

product price: $8.99
/ea

Key Features

For Wire Size
2/0 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD26M6E14
Zoro #
G6121981
UPC #
781810668245
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
2/0 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.91 in
Cable Size
2/0 AWG
Barrel Length
0.71 in
Width
0.87"
Overall Length
1.93 in
Tongue Width - Wire Connector
0.87 in
Length
1.93"
Hole Diameter
0.26 in
Tongue Thickness
0.08 in
Maximum Wire Size
2/0 AWG
Barrel Outside Diameter
0.67 in
Minimum Wire Size
2/0 AWG
Tongue Length
1.22 in
Strip Length
7/8 in
Dimension - B Length inch
0.71 in
Dimension - Outside Diameter inch
0.67 in
Dimension - Pad Width inch
0.91 in
Dimension - Strip Length inch
13/16
Dimension - L Length Overall mm
49 mm
Dimension - Hole Size inch
0.26 in
Dimension - Length Overall inch
1.93 in
Dimension - Bolt Size fraction
2023-01-04
Dimension - Stud Size inch
44930
Conductor Size
2/0 AWG
Conductor - Copper Str Size
2/0 AWG

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1022
Color Code
None
Standards
UL 467
Wire Range
2/0 AWG
Connection Material
Tin Plater Copper
Peep Hole
No
Insulation Color
Bare
Max. Voltage
600 V
Max. Temp.
302 Degrees F
Hole Center to End
1.500"
Seam
Brazed
Plate Material
Tin
Insulation Type
Non-Insulated
Connector Type
YAD
Tongue Style
Ring
Barrel Style
Brazed
Seam Style
Brazed
Terminal Shape
Ring Tongue
Insulation Material
None
Termination Style
Crimp
Insulation Coverage
None
Contact Material
Copper
RoHS Compliant
Yes
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Hole Spacing
0.79 in
Compatible with Product Type
Code, Flex Cable
Contact Finish
Tin
Maximum Operating Temperature
302 Degrees F
Maximum Voltage
600 V
Minimum Operating Temperature
302 Degrees F
Plated
Y
Industry Standard(s)
UL467
Feature - Barrel Type
Long
Physical Attribute - Tongue Type
Ring
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Voltage - Maximum
600 V
Plating Type
Tin
Conductor Type
CU C Str-SizeCU C Flex-Size
Trade Name
HYLUGâ„¢
Item Type
3B
Type
Ring Tongue

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 0.91 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
