  11. One-Hole Compression Lug, 2/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None

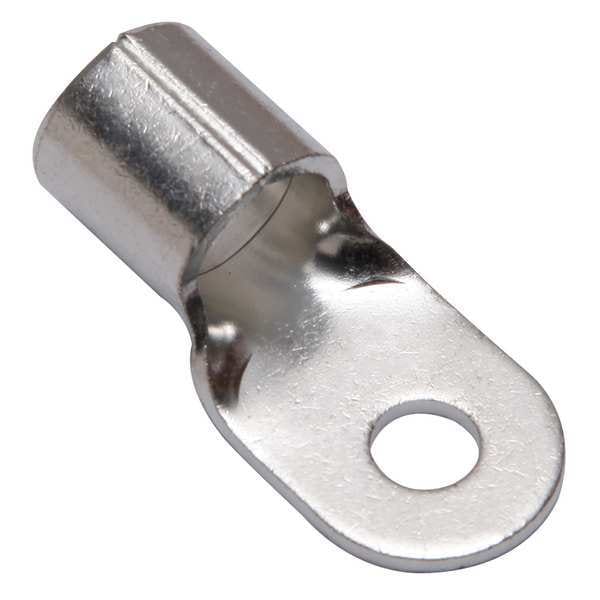

Burndy One-Hole Compression Lug, 2/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None YAD26M8E516 - main

One-Hole Compression Lug, 2/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None

  • Mfr # YAD26M8E516

  • Zoro # G6124036

product price: $9.85
/ea

Key Features

For Wire Size
2/0 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD26M8E516
Zoro #
G6124036
UPC #
781810668252
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
2/0 AWG
For Stud Size
5/16 in
Barrel Size
Long
Tongue Width
0.91 in
Tongue Width - Wire Connector
0.87 in
Cable Size
2/0 AWG
Length
1.93"
Overall Length
1.93 in
Width
0.87"
Barrel Length
0.71 in
Barrel Outside Diameter
0.67 in
Hole Diameter
0.33 in
Tongue Length
1.22 in
Strip Length
7/8 in
Minimum Wire Size
2/0 AWG
Tongue Thickness
0.08 in
Maximum Wire Size
2/0 AWG
Dimension - Strip Length inch
13/16
Dimension - Stud Size inch
45062
Dimension - L Length Overall mm
49 mm
Dimension - Pad Width inch
0.91 in
Conductor Size
2/0 AWG
Dimension - Bolt Size fraction
2023-05-16
Dimension - Length Overall inch
1.93 in
Dimension - B Length inch
0.71 in
Dimension - Outside Diameter inch
0.67 in
Dimension - Hole Size inch
0.33 in
Conductor - Copper Str Size
2/0 AWG

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1022
Color Code
None
Standards
UL 467
Max. Voltage
600 V
Tongue Style
Ring
Peep Hole
No
Insulation Color
Bare
Connector Type
YAD
Seam
Brazed
Plate Material
Tin
Insulation Type
Non-Insulated
Wire Range
2/0 AWG
Max. Temp.
302 Degrees F
Hole Center to End
1.500"
Connection Material
Tin Plater Copper
Compatible with Product Type
Code, Flex Cable
Contact Finish
Tin
Termination Style
Crimp
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Maximum Operating Temperature
302 Degrees F
Insulation Material
None
RoHS Compliant
Yes
Minimum Operating Temperature
302 Degrees F
Terminal Shape
Ring Tongue
Seam Style
Brazed
Maximum Voltage
600 V
Hole Spacing
0.79 in
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Insulation Coverage
None
Contact Material
Copper
Barrel Style
Brazed
Feature - Barrel Type
Long
Industry Standard(s)
UL467
Plated
Y
Plating Type
Tin
Conductor Type
CU C Str-SizeCU C Flex-Size
Trade Name
HYLUGâ„¢
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Item Type
3B
Voltage - Maximum
600 V
Physical Attribute - Tongue Type
Ring
Type
Ring Tongue

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 0.91 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
