  11. One-Hole Compression Lug, 2/0 AWG Max, 5/16 in Stud, Standard Barrel, Copper, Black

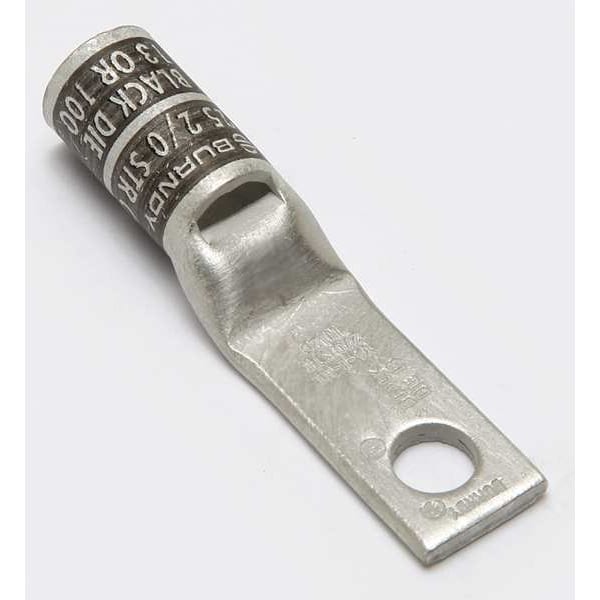

Burndy One-Hole Compression Lug, 2/0 AWG Max, 5/16 in Stud, Standard Barrel, Copper, Black YA26LNT516 - main

One-Hole Compression Lug, 2/0 AWG Max, 5/16 in Stud, Standard Barrel, Copper, Black

  • Mfr # YA26LNT516

  • Zoro # G4699886

product price: $12.79
/ea

Key Features

Cable Size
2/0 AWG
Connector Type
Standard Barrel
Width
0.62"
Material
Copper
Length
2.62"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YA26LNT516
Zoro #
G4699886
UPC #
781810559857
Country of Origin
United States

Dimensions

Cable Size
2/0 AWG
Width
0.62"
Length
2.62"
Barrel Length
Short
Overall Width
0.62 in
Overall Length
2.62 in
Length (Straight Wireway)
2.62 in
For Stranded Copper Wire Size - Maximum
2/0 AWG
Strip Length
1 in
Barrel Size
Standard
Barrel Outside Diameter
0.56 in
Tongue Length
1.14 in
Tongue Thickness
0.13 in
For Stud Size
5/16 in
Hole Size
0.33 in
For Stranded Copper Wire Size - Minimum
2/0 AWG
Tongue Width
0.62 in
For Wire Size
2/0 AWG
Dimension - Z inch
0.81 in
Conductor Size
2/0 AWG
Conductor - Copper Str Size
2/0 AWG
Dimension - B Length fraction
15/16 in
Dimension - Hole Size mm
10 mm
Dimension - Pad Width inch
0.62 in
Dimension - Bolt Size fraction
45062
Dimension - Length Overall inch
2.62 in
Dimension - D inch
1.14 in
Dimension - Hole Size inch
0.38
Dimension - L Length Overall mm
67 mm
Dimension - N inch
0.33 in
Dimension - Strip Length inch
1 in
Dimension - Stud Size inch
45062
Dimension - Hole Size fraction
2023-05-16
Dimension - Stud Size fraction
45062
Conductor - Copper Str Navy Size
125 (61) Navy
Dimension - Bolt Size inch
0.3125
Dimension - B Length inch
0.94 in
Conductor - Copper Str Navy Size Range
125 (61) Navy
Dimension - Outside Diameter inch
0.56 in
Dimension - Bolt Hole Size inch
0.33 in
Conductor - Copper Str Size Range
2/0 AWG

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Black
Die Code
13
Standards
CSA Certified, UL 486A-486B, UL Listed
Item
One-Hole Compression Lug
Plate Material
Electro Tin
Tongue Style
Standard
Hole Center to End
0.33 in
Peep Hole
Yes
Application
For Code Conductor
Maximum Voltage
35 kV AC
Tongue Angle
Straight
Termination Style
Crimp
Inspection Hole
Yes
Barrel Style
Chamfered
For Wire Type
Stranded
Special Features
Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv
For Conductor Material
Copper
Maximum Operating Temperature
194 Degrees F
Contact Finish
Tin
RoHS Compliant
Yes
Voltage - Maximum
35000
Conductor Type
CODE
Feature - Barrel Style
Chamfered
Plated
Y
Physical Attribute - Tongue Angle
Straight
Plating Type
Tin - Electro Plated
Conductor - Material
COPPER
Rating - KVA
35 kV
Physical Attribute - Tongue Type
Standard
Physical Attribute - Number of Holes
1
Trade Name
HYLUGâ„¢
Finish Type
Tin-Plated
Die Index
13
Voltage Rating
35 kV
Certification - CSA Approved
Yes
Rating - Minimum Voltage
600
Feature - Barrel Type
Standard
UL Listed
Yes
Industry Standard(s)
UL 486A-486B
Type
YA-L-NT, Code Conductor Standard Barrel Narrow Tongue
Number of Holes
1

Description

Compression Lug, Barrel Size Standard, Color Code Black, Die Code 13, Tongue Angle Straight, Tongue Width 0.62 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
