  11. One-Hole Compression Lug, 250 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Yellow

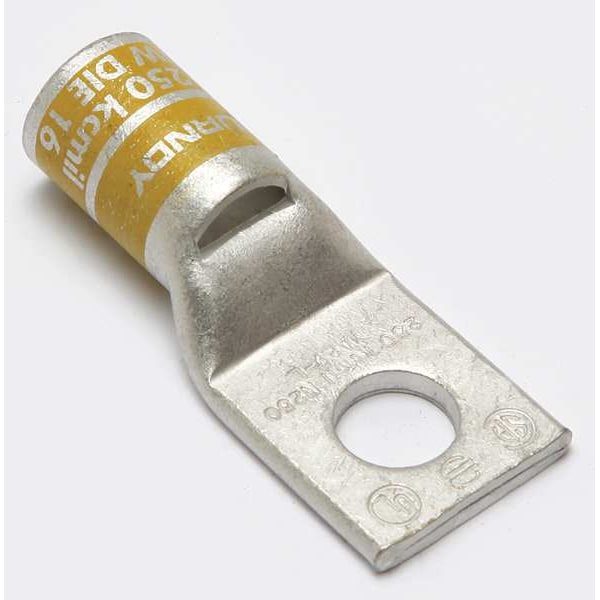

Burndy One-Hole Compression Lug, 250 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Yellow YA29LBOX - main

CAD Viewer & Download Files

One-Hole Compression Lug, 250 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Yellow

  • Mfr # YA29LBOX

  • Zoro # G4655271

CAD Available
product price: $15.65
/ea

Key Features

CAD Drawing
For Wire Size
250 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YA29LBOX
Zoro #
G4655271
UPC #
781810559420
Country of Origin
United States

Dimensions

For Wire Size
250 kcmil
For Stud Size
1/2 in
Barrel Size
Standard
Tongue Width
1.11 in
Cable Size
250 kcmil
Length
2.67"
Barrel Length
Short
Width
1.11"
Overall Length
2.67 in
Overall Width
1.11 in
Length (Straight Wireway)
2.68 in
Tongue Thickness
0.16 in
Barrel Outside Diameter
0.75 in
Tongue Length
1.08 in
Strip Length
1 1/8 in
For Stranded Copper Wire Size - Minimum
250 kcmil
Hole Size
0.53 in
For Stranded Copper Wire Size - Maximum
250 kcmil
Dimension - Strip Length inch
39448
Dimension - N inch
0.53 in
Conductor - Copper Str Navy Size
250 (61) Navy
Dimension - Hole Size mm
13 mm
Dimension - Outside Diameter inch
0.75 in
Dimension - L Length Overall mm
68 mm
Dimension - D inch
1.08 in
Dimension - Bolt Size fraction
1 to 2
Conductor Size
250 KCMIL
Dimension - Z inch
0.55 in
Dimension - B Length inch
1.06 in
Dimension - Length Overall inch
2.67 in
Dimension - Bolt Size inch
0.5
Conductor - Copper Str Size Range
250 kcmil
Dimension - Pad Width inch
1.11 in
Conductor - Copper Str Size
250 kcmil
Dimension - Stud Size inch
1 to 2
Dimension - Stud Size fraction
1 to 2
Dimension - Hole Size inch
0.53 in
Dimension - Hole Size fraction
1 to 2
Dimension - Bolt Hole Size inch
0.52 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Die Code
16
Color Code
Yellow
Standards
CSA Certified, UL 486A-486B, UL Listed
Peep Hole
Yes
Hole Center to End
0.53 in
Tongue Style
Standard
Connector Type
Standard Barrel
Plate Material
Electro Tin
Application
For Code Conductor
Termination Style
Crimp
Special Features
Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv
Contact Finish
Tin
Barrel Style
Chamfered, Skived
RoHS Compliant
Yes
For Wire Type
Stranded
Maximum Voltage
35 kV AC
Maximum Operating Temperature
194 Degrees F
Physical Attribute - Tongue Type
Standard
UL Listed
Yes
Physical Attribute - Tongue Angle
Straight
Rating - KVA
35 kV
Plated
Y
Physical Attribute - Number of Holes
1
Type
Standard Barrel, Tin Plated
Feature - Barrel Type
Standard
Conductor Type
CODE
Finish Type
Tin-Plated
Die Index
16
Voltage Rating
35 kV
Feature - Barrel Style
ChamferedSkived
Conductor - Material
Copper
Rating - Minimum Voltage
600
Temperature Rating
194
Certification - CSA Approved
Yes
Trade Name
HYLUGâ„¢
Voltage - Maximum
35000
Plating Type
Tin - Electro Plated
Industry Standard(s)
UL 486A-486B
Number of Holes
1
CAD Available
Yes

Description

Compression Lug, Barrel Size Standard, Color Code Yellow, Die Code 16, Tongue Angle Straight, Tongue Width 1.11 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 250 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
