  11. One-Hole Compression Lug, 3/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Orange

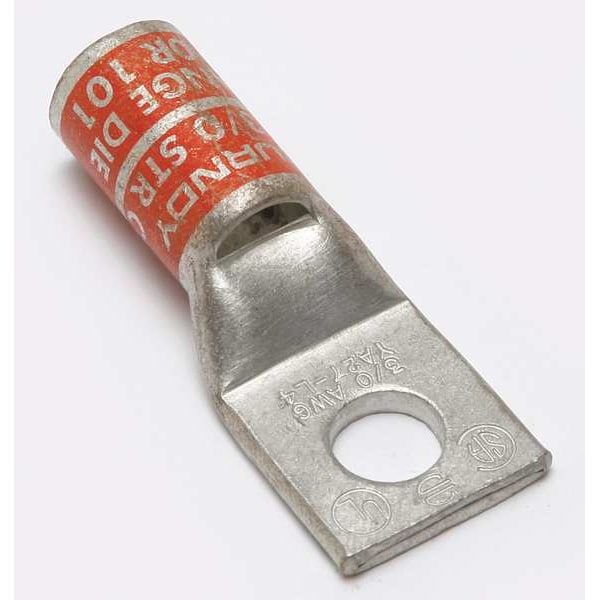

Burndy One-Hole Compression Lug, 3/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Orange YA27L4BOX - main

One-Hole Compression Lug, 3/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Orange

  • Mfr # YA27L4BOX

  • Zoro # G4660162

product price: $13.49
/ea

Key Features

Cable Size
3/0 AWG
Connector Type
Standard Barrel
Width
0.91"
Material
Copper
Length
2.29"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YA27L4BOX
Zoro #
G4660162
UPC #
781810559437
Country of Origin
United States

Dimensions

Cable Size
3/0 AWG
Width
0.91"
Length
2.29"
Barrel Length
Short
Overall Width
0.91 in
Overall Length
2.29 in
Length (Straight Wireway)
2.29 in
Strip Length
1 1/16 in
Tongue Thickness
0.13 in
Barrel Size
Standard
For Stud Size
3/8 in
For Stranded Copper Wire Size - Minimum
3/0 AWG
For Stranded Copper Wire Size - Maximum
3/0 AWG
For Wire Size
3/0 AWG
Hole Size
0.4 in
Barrel Outside Diameter
0.62 in
Tongue Length
0.83 in
Tongue Width
0.91 in
Dimension - L Length Overall mm
58 mm
Dimension - N inch
0.41 in
Conductor - Copper Str Size Range
3/0 AWG
Dimension - Hole Size fraction
2023-03-08
Dimension - Stud Size fraction
44993
Dimension - Hole Size inch
0.40 in
Dimension - Bolt Size fraction
44993
Dimension - Pad Width inch
0.91 in
Conductor - Copper Str Navy Size
150 (61) Navy
Conductor Size
3/0 AWG
Dimension - Length Overall inch
2.29 in
Thickness - Pad
0.13 in
Dimension - Bolt Hole Size inch
0.39 in
Dimension - B Length fraction
1 in
Dimension - Thread Size
44993
Dimension - Strip Length inch
42370
Conductor - Copper Str Size
3/0 AWG
Dimension - Hole Size mm
10 mm
Dimension - B Length inch
1.00 in
Dimension - Stud Size inch
44993
Dimension - Outside Diameter inch
0.62 in
Dimension - Z inch
0.42 in
Dimension - Bolt Size inch
0.38

Details

Connector Type
Standard Barrel
Material
Copper
Color Code
Orange
Tongue Style
Standard
Item
One-Hole Compression Lug
Standards
CSA Certified, UL 486A-486B, UL Listed
Peep Hole
Yes
Hole Center to End
0.41 in
Die Code
14
Plate Material
Electro Tin
Application
For Code Conductor
Special Features
Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv
RoHS Compliant
Yes
Tongue Angle
Straight
Maximum Voltage
35 kV AC
Barrel Style
Chamfered, Skived
For Conductor Material
Copper
Maximum Operating Temperature
194 Degrees F
Contact Finish
Tin
Inspection Hole
Yes
For Wire Type
Stranded
Termination Style
Crimp
UL Listed
Yes
Die Index
14
Conductor - Material
Copper
Industry Standard(s)
UL 486A-486B
Rating - Minimum Voltage
600
Finish Type
Tin-Plated
Feature - Barrel Type
Standard
Conductor Type
CODE
Physical Attribute - Tongue Type
Standard
Type
Standard Barrel, Tin Plated
Voltage - Maximum
35000
Plating Type
Tin - Electro Plated
Voltage Rating
35 kV
Plated
Y
Physical Attribute - Number of Holes
1
Physical Attribute - Tongue Angle
Straight
Certification - CSA Approved
Yes
Rating - KVA
35 kV
Feature - Barrel Style
ChamferedSkived
Trade Name
HYLUGâ„¢
Number of Holes
1

Description

Compression Lug, Barrel Size Standard, Color Code Orange, Die Code 14, Tongue Angle Straight, Tongue Width 0.91 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
