  11. One-Hole Compression Lug, 4 AWG Max, 1/2 in Stud, Long Barrel, Copper, None, 5 PK

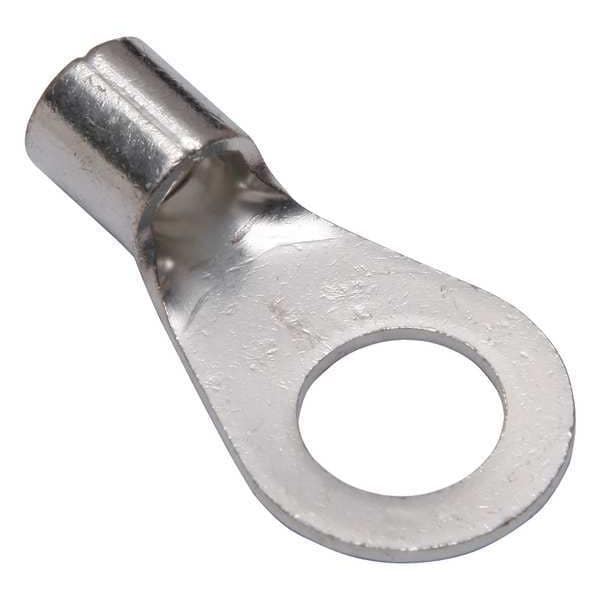

Burndy One-Hole Compression Lug, 4 AWG Max, 1/2 in Stud, Long Barrel, Copper, None, 5 PK YAD4CM12E12 - main

One-Hole Compression Lug, 4 AWG Max, 1/2 in Stud, Long Barrel, Copper, None, 5 PK

  • Mfr # YAD4CM12E12

  • Zoro # G6214993

product price: $14.19
/pk 5, $2.84/ea

Key Features

Cable Size
4 AWG
Connector Type
YAD
Width
0.87"
Material
Copper
Length
1.65"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD4CM12E12
Zoro #
G6214993
UPC #
781810668603
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
4 AWG
Width
0.87"
Length
1.65"
Tongue Width - Wire Connector
0.87 in
Overall Length
1.65 in
Barrel Length
0.43 in
Barrel Size
Long
Maximum Wire Size
4 AWG
For Wire Size
4 AWG
Minimum Wire Size
4 AWG
Barrel Outside Diameter
0.41 in
Hole Diameter
0.51 in
Strip Length
1/2 in
Tongue Thickness
0.06 in
Tongue Width
0.87 in
Tongue Length
1.22 in
Dimension - Hole Size inch
0.51 in
Dimension - Outside Diameter inch
0.41 in
Dimension - Strip Length inch
1 to 2
Dimension - Pad Width inch
0.87 in
Dimension - Length Overall inch
1.65 in
Dimension - B Length inch
0.43 in
Conductor Size
4 AWG
Dimension - L Length Overall mm
42 mm
Conductor - Copper Str Size
4 AWG
Dimension - Stud Size inch
1 to 2
Dimension - Bolt Size fraction
1 to 2
For Stud Size
1/2 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Wire Range
4 AWG
Connection Material
Tin Plater Copper
Hole Center to End
1.220"
Die Code
1017
Insulation Color
Bare
Peep Hole
No
Plate Material
Tin
Item
One-Hole Compression Lug
Seam
Brazed
Insulation Type
Non-Insulated
Tongue Style
Ring
Max. Voltage
600 V
Max. Temp.
302 Degrees F
Standards
UL 467
Termination Style
Crimp
Compatible with Product Type
Code, Flex Cable
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Hole Spacing
0.79 in
Barrel Style
Brazed
Contact Material
Copper
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Maximum Voltage
600 V
Maximum Operating Temperature
302 Degrees F
Minimum Operating Temperature
302 Degrees F
Terminal Shape
Ring Tongue
Contact Finish
Tin
Seam Style
Brazed
RoHS Compliant
Yes
Insulation Material
None
Insulation Coverage
None
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Industry Standard(s)
UL467
Item Type
3B
Feature - Barrel Type
Long
Plated
Y
Conductor Type
CU C Str-SizeCU C Flex-Size
Trade Name
HYLUGâ„¢
Plating Type
Tin
Physical Attribute - Tongue Type
Ring
Voltage - Maximum
600 V
Type
Ring Tongue
Inspection Hole
No
For Conductor Material
Copper

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 4 AWG, Maximum Wire Size 4 AWG, Termination Style Crimp, Tongue Width 0.87 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.43 in, Barrel Outside Diameter 0.41 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
