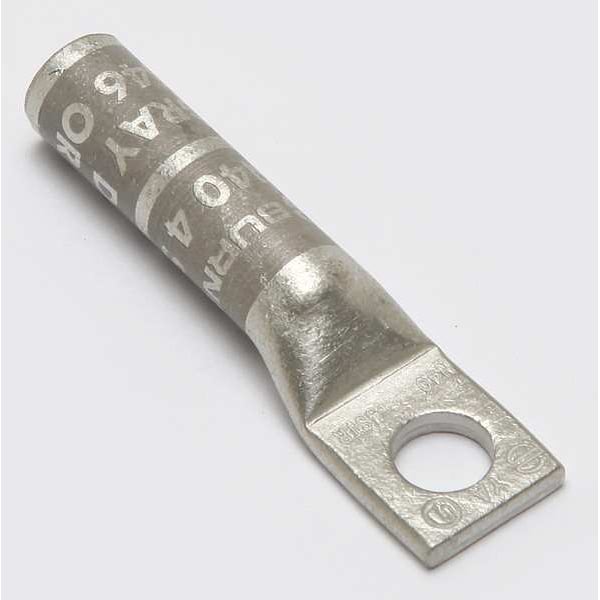

One-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Long Barrel, Copper, Gray
Mfr # YA4C
Zoro # G4684477
CAD Available
product price: $4.75
/eaKey Features
CAD Drawing
For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA4C
Zoro #
G4684477
UPC #
781810559765
Country of Origin
United States
Dimensions
For Wire Size
4 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.50 in
Cable Size
4 AWG
Width
1/2"
Length
1.87"
Barrel Length
Long
Overall Length
1.87 in
Overall Width
0.51 in
Length (Straight Wireway)
1.87 in
Barrel Outside Diameter
0.34 in
Tongue Length
0.5 in
Hole Size
0.27 in
For Stranded Copper Wire Size - Minimum
4 AWG
For Stranded Copper Wire Size - Maximum
4 AWG
Tongue Thickness
0.09 in
Strip Length
1 3/16 in
Dimension - Stud Size inch
44930
Dimension - Strip Length inch
42372
Dimension - Length Overall inch
1.87 in
Conductor Size
4 AWG
Dimension - Hole Size mm
7 mm
Dimension - Outside Diameter inch
0.34 in
Conductor - Copper Str Navy Size Range
40 (19) Navy
Dimension - Bolt Size fraction
2023-01-04
Conductor - Copper Str Size
4 AWG
Dimension - D inch
0.50 in
Dimension - L Length Overall mm
47 mm
Dimension - B Length inch
1.12 in
Dimension - Bolt Hole Size inch
0.27 in
Dimension - Bolt Size inch
0.25
Dimension - N inch
0.25 in
Dimension - Hole Size inch
0.27 in
Dimension - Stud Size fraction
2023-01-04
Conductor - Copper Str Navy Size
40 (19) Navy
Dimension - Z inch
0.25 in
Conductor - Copper Str Size Range
4 AWG
Dimension - Hole Size fraction
2023-01-04
Dimension - Pad Width inch
0.50 in
Dimension - B Length fraction
1-1/8 in
Description
Compression Lug, Barrel Size Long, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
