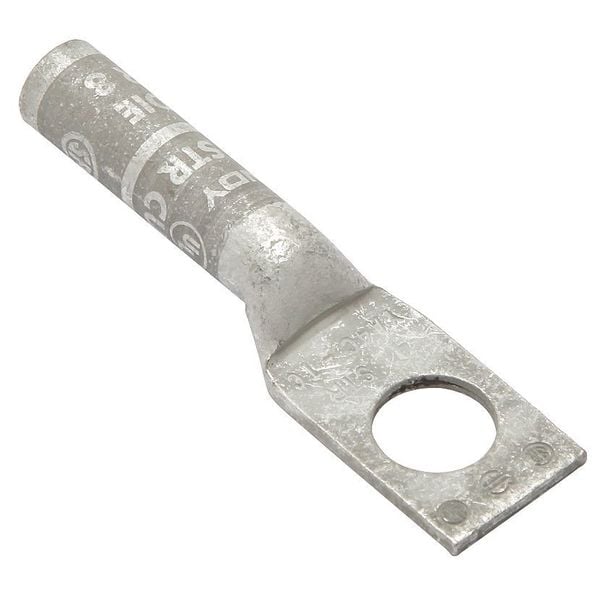

One-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Long Barrel, Copper, Gray
Mfr # YA4CTC38
Zoro # G4701505
product price: $7.19
/eaKey Features
Cable Size
4 AWG
Connector Type
Long Barrel
Width
0.58"
Material
Copper
Length
2-1/4"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA4CTC38
Zoro #
G4701505
UPC #
781810555781
Country of Origin
United States
Dimensions
Cable Size
4 AWG
Width
0.58"
Length
2-1/4"
Barrel Length
Long
Overall Width
0.59 in
Overall Length
2.25 in
Length (Straight Wireway)
2.26 in
Tongue Thickness
0.08 in
Barrel Size
Long
For Wire Size
4 AWG
For Stranded Copper Wire Size - Maximum
4 AWG
For Stud Size
3/8 in
Barrel Outside Diameter
0.34 in
Hole Size
0.4 in
Strip Length
1 3/16 in
Tongue Width
0.58 in
Tongue Length
0.83 in
For Stranded Copper Wire Size - Minimum
4 AWG
Dimension - Hole Size mm
10
Dimension - Bolt Size inch
0.38
Dimension - Strip Length inch
1-3/16 in
Dimension - Pad Width inch
0.58
Dimension - L Length Overall mm
57
Dimension - Hole Size inch
0.4
Dimension - Stud Size inch
3/8 in
Dimension - Stud Size fraction
2023-03-08
Dimension - N inch
0.41
Dimension - Length Overall inch
2.25
Dimension - Z inch
0.42
Conductor - Copper Str Navy Size Range
40 (19) Navy
Conductor Size
4 AWG
Dimension - Bolt Hole Size inch
0.4
Conductor - Copper Solid Size
4 AWG
Dimension - Hole Size fraction
2023-03-08
Conductor - Copper Str Size
4 AWG
Conductor - Copper Str Navy Size
40 (19) Navy
Dimension - Outside Diameter inch
0.34
Dimension - B Length inch
1.12
Conductor - Copper Str Size Range
4 AWG
Dimension - Bolt Size fraction
2023-03-08
Description
Compression Lug, Barrel Size Long, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
